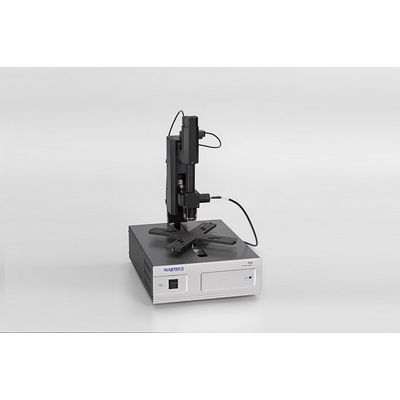

Filmetrics - Model F54 -Automated Film Thickness Mapping

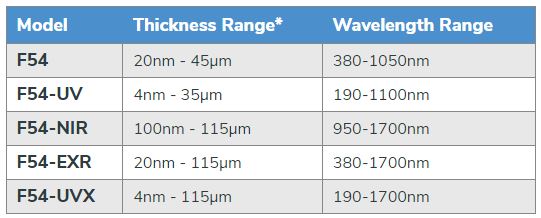

Thin-film thickness of samples up to 450 mm in diameter are mapped quickly and easily with the F54 advanced spectral reflectance system. The motorized r-theta stage moves automatically to selected measurement points and provides thickness measurements as fast as two points per second. Choose one of the dozens of predefined polar, rectangular, or linear map patterns, or create your own with no limit on the number of measurement points. The entire desktop system is set up in minutes and can be used by anyone with basic computer skills. The F54 film thickness mapping system connects to the USB port of your Windows® computer and can be set up in minutes. The different instruments are distinguished primarily by thickness and wavelength range. Generally shorter wavelengths (e.g. F54-UV) are required for measurement of thinner films, while longer wavelengths allow measurement of thicker, rougher, and more opaque films.
