Hjchem - Automated PLC Control Thin Film Short Path Fractional Distillation

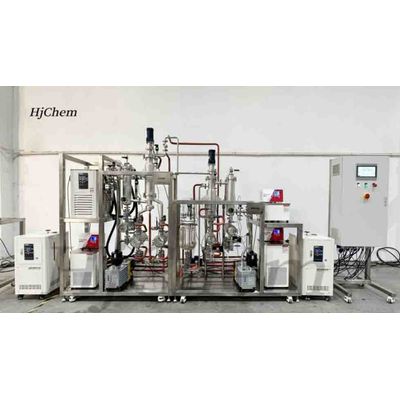

Our Automated Thin Film Short Path Fractional Distillation System is a custom-designed two-stage molecular distillation unit, integrating advanced thin film evaporation and short path fractional distillation technologies.1. Evaporation area: 0.06, 0.1, 0.15, 0.25, 0.35, 0.5, 1, 1.5, 2, 3, 5 ㎡ and more.
2. Vacuum degree: <=0.001mbar
3. Feed speed: 0.5 ~500kg/h
4. Max speed: 350rpm
5. Operation temperature: -90°C ~ +350°C
This system featuring compact, PLC automation control and high-purity separation, making it ideal for pharmaceutical, chemical, and essential oil refining applications.
The entire process is managed by a PLC (Programmable Logic Controller), ensuring full automation for pilot-scale production.
Key controllable parameters include:
1. Stirring speed adjustment for optimal thin film formation
2. Precise temperature control for heat-sensitive materials evaporation, condensation
3. Vacuum level regulation for improved separation efficiency and lower material evaporation temperature
4. Gear pump operation for smooth material transfer between stages
5. Real-time data logging & export for process optimization
