KingFisher - Model Apex -Automated Purification for DNA, RNA, Proteins and Cells
Building on decades of Thermo Fisher KingFisher value and excellence, we’ve combined unparalleled instrument capabilities with complete touchscreen and user control to deliver unrivaled flexibility and performance. Sample prep can be simple.

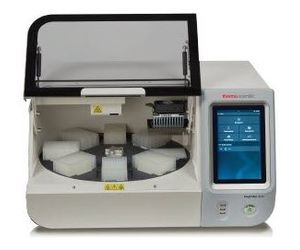

A modern touchscreen display and an intuitive interface puts you in control of operating the instrument.
- Easily edit or write protocols directly on the instrument.
- Customize protocols at every step—bind, wash, elute
- Option to work from your PC with BindIx software
- Rely on guided visuals for easy plate loading, protocol changes, and instrument set-up
- Instrument-defined limits reduce errors in any protocol modifications
Achieve peak performance for purifying DNA, RNA, Proteins, or Cells. We combined the trustworthy KingFisher performance with even greater flexibility, so you get faster and reproducible results with (almost) any application.
- Elute in lower volumes for demanding downstream applications
- Purify 24 or 96 samples in 25-65 min
- Control heating and cooling to maintain sample integrity
- Elute in storage tubes and revisit samples later
- Safeguard against contamination with 2 UV lights

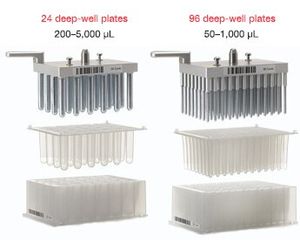

Install two magnets and heating blocks. KingFisher Apex intelligently selects the correct magnetic head based on your protocol needs. Work from large to small volume ranges by choosing from 24-well, 96-well, or PCR formats with corresponding magnetic heads and plates.
Connect Apex to the cloud for even greater access and control.
- Conveniently save, transfer, or download protocols from (virtually) anywhere, using a cloud library, Local Area Network (LAN) file locations, USB, or even scan the barcode from kits
- Generate run reports in PDF or XML format for ease of run tracking and LIMS incorporation

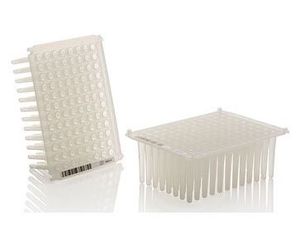

Thought it was just a plastic plate? Think again. We’ve engineered our plastics to achieve optimal performance, reduce errors, and increase traceability.
- Specialized tip combs and well design enable lower elution volumes, storage tube elution, and heating and cooling consistency
- Lot-specific bar-codes confirm proper plate position during loading or may be used for lot tracking and documentation
KingFisher Apex supports a wide variety of applications with a wide range of validated protocols with from trusted reagents.
Processing volume by plate format:
- 96 format:
- Deep-well: 15-1,000 μl
- KingFisher standard: 15-200 μl
- PCR: 10-80 μl
- 24 format:
- Deep-well: 30-5,000 μl
- Storage tubes:
- 96 tubes: 30-200 μl
- 24 tubes: 200-1,000 μl
- Customizable protocols: Yes, created with the instrument user interface or BindIx software, which requires Microsoft Windows 10 software
- Heating and cooling ranges:
- Heating up to 100°C
- Cooling down to 4°C
- Ultraviolet light: 2 UV lamps, max run time 23 h 59 min
- Dimensions (H x W x D): 45 x 78 x 59 cm (18 x 31 x 79 in)
- Weight: 56 kg (123 lbs)
- Plate formats: 96 deep-well plate, 96-well KingFisher standard plate, 96-well PCR plate (skirted and semiskirted)*, 24 deep-well plate, 96 storage tubes*, 24 storage tubes*
- Instrument memory: ~30GB
- Display interface: Graphical user interface with touch screen
- Power: 100-240 VAC 50/60 Hz, 280 VA
- Barcode reading: On instrument; 1D barcodes
- Magnetic head options: 4 options, customer interchangeable
- Data connectivity: USB device for PC, USB Wi-Fi or LAN adapter for network, RS-232 for automation, cloud-enabled
- Cat. No:
- 5400910 KingFisher Apex instrument with 96 PCR head
- 5400920 KingFisher Apex instrument with 96 combi head
- 5400930 KingFisher Apex instrument with 96 deep-well head
- 5400940 KingFisher Apex instrument with 24 combi head
* Recommended versions: Thermo Scientific Armadillo PCR plates (skirted: Cat. No. AB2396, semiskirted: Cat. No. AB2496). Thermo Scientific Nunc storage tubes (96 tubes: Cat. No. 374086, 24 tubes: Cat. No. 364323).
