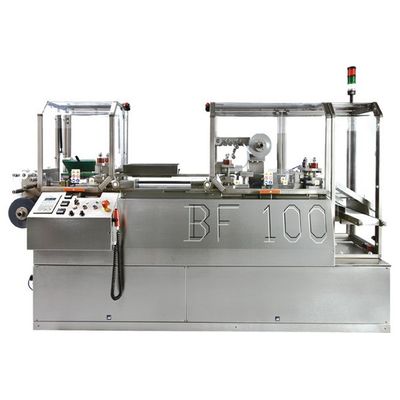

OMAR - Model BF 100 -Automatic Blistering Machines
FromO.M.A.R. s.r.l.
The BF100 automatic blistering machine works automatically with an alternate system, and produces industrial-quality blisters. The product can be loaded manually by the operator or automatically with the use of the "FULL BOX" universal loader. The entering of data and machine controls work cycles is carried out through an operator panel managed by a Siemens PLC (Compliance CFR21).
Most popular related searches
- Automatic Blistering machine 2)Production with alternate system
- 2 blisters per stroke if the total dimensions of the 2 blisters does not exceed 100 mm, taking into account the 6-mm gap between one blister and the next
- Vertical and horizontal perforation, which can also be carried out at the same time
- Possibility to install a forming system with pre-punches
- Production of ALU-ALU blisters
- Production of PVC-ALU blisters
- Maximum format of the blister 120x100 mm
- Maximum pocket depth 15 mm
- Production of about 600-1,600 blisters/hour (1 blister per stroke) or about 1,200-3,200 blisters/hour (2 blisters per stroke)
- JSetting of data and of work cycle from operator panel managed by a Siemens PLC (CFR21 Compliance)
- Control system for the angular rotation position of the camshaft from absolute encoder, with accuracy of 360 pulses/revolution
- The temperature is controlled by 3 thermoregulators, 2 of which are dedicated to temperature control for the forming and 1 for the sealing
Impossibility to install automatic product loading system with rotating brushes
- Approx. 35 bpm (35 strokes per minute) depending on the blister pitch
- 1 blister per stroke about 2,100 blisters/h format 120x100 mm or smaller
- 2 blisters per stroke about 4,200 blisters/h format 50x100 mm or smaller
- k blister per stroke about 8,000 blisters/h format 50x50 mm or smaller
- Maximum pocket height 17 mm for PVC blisters
