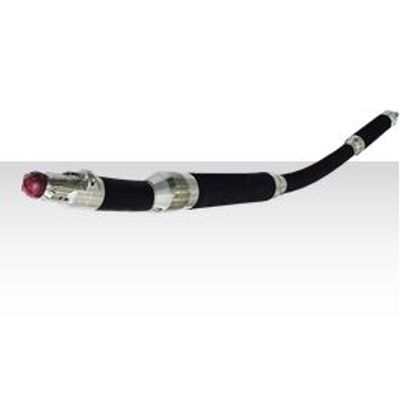

Micro - Automatic Cutting Robot

Large range of application in pipes from DN 80 to 150/3“ up to 6“ (inside diameter), optional up to DN 250/10“

Most popular related searches

excellent flexibility in bends up to 90° in DN 100/4“ through rotating and swivel head
high work efficiency due to axial feed of approx. 100 mm/4“
usable also in difficult pipe situations due to manual and automatic creeping and climbing function
pneumatic clamping unit permits usage also in vertical pipes
only very small access openings required
convenient supply hose package of 30 m/98,40 ft
extremely high cutting force through powerful air motor
flexible operation by cable remote control and removable monitor
very precise control of cutter through joystick
control unit MICRO automatic with case optional available
permanent monitoring of cutting operation due to color camera with air/water cleaning
great mobility convenience through compact Chassis
damage prevention through automatic monitoring of internal pressure with signalling
deep pipe insertion by fiberglass push rod possible
variable cutting tools can be installed
minimum downtimes in case of repair through operator-replaceable components or use of express service (see detailed description in the offer/order conditions)

useseable from DN 80 to 150/3 up to 6“ (inside diameter), up to DN 250/10“ with optional extensions
flexibility in bends 90° from DN 100/4“ (clay, no folds, or similar)
axial feed approx. 100 mm/4“, manual and automatic creeping and climbing function (single or permanent movement)
30 m/98,40 ft supply hose on drum
coupling elements for fiberglass push rod
400° rotating and approx. 90° swivel movement with stops
air-powered cutter motor
color camera with LED
camera cleaning with permanent air and switchable water flushing
splashproof according to IP 54
waterproof device with 0.8 bar nitrogen filling
permanent monitoring of internal pressure with signalling
cable remote control with joystick for rotating (sensitivity adjustable) and swivelling, light control, switch for water, cutting motor and control of bladders; analogue video output
3,5“ TFT LCD Monitor, storage picture/video (JPEG/MPEG) with SD card, USB, date and time display
outside diameter of cutter: 72 mm
overall dimensions: approx. L 660 x W 550 x H 800 mm (approx. 26“ x 22“ x 31“)
weight: approx. 55 kg
completely assembled cutter on chassis with pneumatic and electrical rotary leadthrough
detachable individual components
accessory case with jobsite tools, valve extension, set of replacement screws, 1 carbide half globe cutting tool granulate, nitrogen filling adapter, thread extension, ball bearings and fins for air motor, operation manual, overview spare parts
