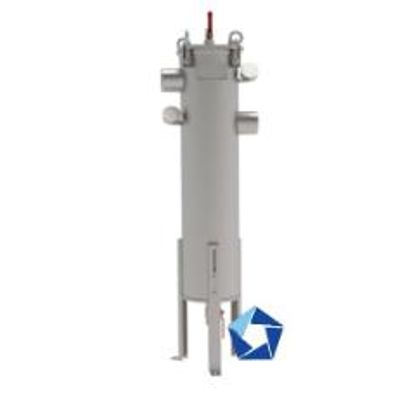

CWG - Model ABG 24 -Z2 -Automatic Filter
FromCWG d.o.o.
ABG filters support flow rates of up to 70 m³/h (308 US gpm), with two bag sizes up to 4500 cm² covering a filtration degree range between 200 and 1 μm and with i/o port sizes: 2″ and 3″. The ABG filter has support legs, manual drain valve, manual vent valve and pressure gauges. ABG filters can be equipped with a magnetic particle capture kit for metals present in water
Most popular related searches
manual valve
drain valve
pressure gauge
bag filter
water flow rate
metals in water
water flow rating
bag filter housing
drain vent
filter bag
Flow rate: 35 m3/h
Connection: 2″
Bag filter with stainless steel housing and inner bag for demanding applications
- Stainless Steel Housing
- Removable bags with several degrees of filtration
- There are no mechanical moving parts.
- Easy to install, maintain and change bags
- The degree of filtration is lowered to 1 μm
