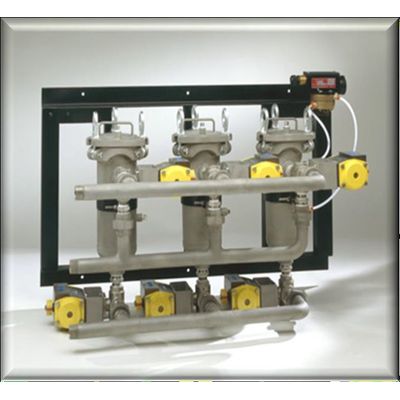

ZGF EZ Clean - Model EC100 -Automatic Liquid Filtration System

• The EC100’s modular “pod” houses one (1) Spring Filter element per pod.
• The EC100 is ideal for low flow applications (1 - 50 gpm).
• The EC100 is suitable for low pressure applications (less than 35 psi) where an external backwash source is available
• The EC100 can be manufactured to ASME Section VIII standards.
• EC100 system flowrate and filter element micron rating determine the required number of pods.

EC100 materials of construction can be matched to ensure compatibility with the wide array of fluid compositions; and the EC100 can be designed for continuous service up to 190oF and 192 psi. ZGF can provide the pods and manifolds in many materials to meet your requirements.

• Standard: 304 stainless steel
• Additional corrosion resistance: Consult ZGF

Filter elements are available in the following materials.

• Standard:
  • Coil: 316 stainless steel
  • Cage: 316 stainless steel
• Additional corrosion resistance:
  • Coil: High nickel alloy
  • Cage: Super Duplex
• Most corrosion resistance:
  • Coil: High nickel alloy
  • Cage: High nickel alloy
