Automatic Marking Systems / Plotters

SHARE

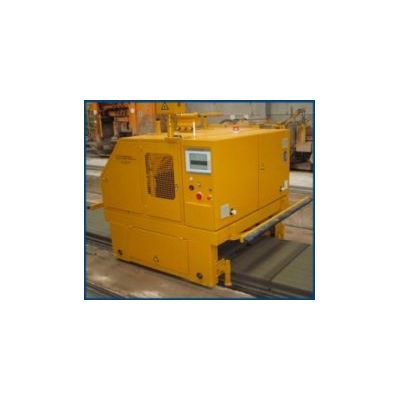

The plotter is a compact fully automatic marking machine for marking directly on (wet) hollow Core slabs. The plotter can be used in a divers type of production processes. The plotter is able to draw all the further necessary work on the slab. The plotter also has the possibility to draw on top and on the side off the slab. With the VDW plotter it is also possible to draw company logo’s and write all slab details. A big advantage in this is that no extra identification tags need to be placed on the slab during production. The machine is battery powered by a 24 Volts DC battery cell. The battery charger is integrated in the machine.

Most popular related searches
laser distance sensor
industrial PC
screening system

The plotter is controlled by a industrial PC, Windows based, and a operator friendly touch screen. The plotter is provided with a wireless Ethernet connection and can therefore be integrated in the existing network, including firewall and virus protection. The plotter will read the necessary data for the bed over this wireless connection. Several data formats can be read by the plotter, including Pre-CAD and AutoCAD DXF-files. The plotter is driven by servo-technology, while positioning on the bed is realized with a laser distance measuring system (accuracy 2 mm at 200 mtr.)

  • Machine Length: 2,5 meter.
  • Machine Width: Depending on track width. (1,8meter for a 1200 mm track)
  • Machine Height: 2,2 meter (including laser).
  • Machine Weight: ~1400 kg.
  • Battery Pack: 24 VDC, production time >10 hours, charging time 8 hours (based on a completely drained battery).
  • Machine speed: Depending on amount of plotting. Maximum driving speed without plotting 45 meter/minute.
  • Machine Accuracy: ± 2 mm at 200 meter.
  • Print Head: 7 or 16 dots, printing on top and side of the slab.
  • Ink reservoir: 5 liters.
  • Data formats: Pre-Cad, AutoCAD DXF, SKIA, Technosoft, HMS, other types on request.
  • Operator interface: Operator friendly touch screen.
  • Operating system: Windows 2000 or Windows XP.
