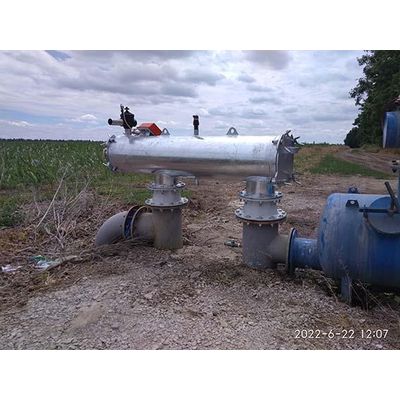

Poligon - Model DY-200 -Automatic Self-Cleaning Filter
FromPolygon-Auto LLC
The POLIGON-AVTO company produces a Dy-200 drip irrigation filter with an automatic flushing system with the following technical characteristics:
Most popular related searches
- Coarse filtration fineness – 4 mm;
- Subtlety of fine filtering – 120 microns;
- Maximum throughput – 280 cubic meters / hour;
- Nominal working pressure – 2.7 bar;
- Maximum working pressure – 10 bar;
- Connection type – flange Dy-200, Pn – 10 bar;
- Flushing cycle – 15 seconds, activated at a pressure drop of 0.5 bar;
- Power supply of the control unit – 4 alkaline batteries 1.5 V;
- Controlled by BLUEBITS smartphone app via Bluetooth;
- The weight of the filter with water is 320 kg.
