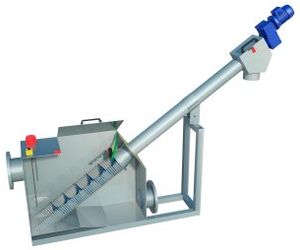

SALHER - Model TA-HEL -Automatic Water Screening Systems

Function:

• Removal of solids equal or larger than 3 mm, waste dehydration and compacting system.

Characteristics:

• Totally dismountable stainless steel AISI 304 equipment.
• Fine screen in stainless steel with opening size from 3 to 10 mm.
• Endless screw manufactured in micro-alloy steel, no central shaft, working angle of 35°.
• Continuous cleaning system of mesh with brushes placed on the endless screw.
• Automatic cleaning system with brushes and pressurized water.
• Automatic waste dehydration system and compactor.
• Neoprene bands for lateral water-tightness.
• Adjustable supporting base height and rotation system for maintenance operations.
• Electrical panel board in option.

Accessories:

• Automatic cleaning system:
  * Cleaning electrovalve N/C 1/2”: cleaning system automation.
  * Filter in Y 1/2”: protection and retention of particles carried by the water.
  * Ball valve 1/2”: closure of the cleaning connection if necessary.
• Safety switch on top cover.
• Emergency stop.
• Conductive level sensor by rods for equipment operation automation.

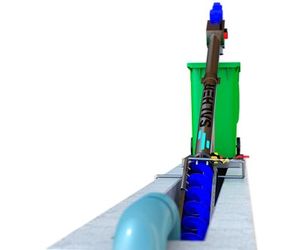

Function:

• Removal of solids equal or larger than 3 mm, waste dehydration and compacting system.
• Ideal for installation down the pumping stations.

Characteristics:

• Totally dismountable stainless steel AISI 304 equipment.
• Fine solids screen in stainless steel with perforated mesh.
• Screen in stainless steel with opening size from 3 to 10 mm.
• Endless screw manufactured in micro-alloy steel, no central shalf, working angle of 35°.
• Continuous cleaning system of mesh with brushes placed on the endless screw.
• Automatic cleaning system with brushes and pressurized water.
• Automatic waste dehydration system and compactor.
• Neoprene bands for lateral watertightness.
• Adjustable supporting base height and rotation system for maintenance operations.
• Structure in stainless steel for aboveground installation, with flanged connections in AISI 304.
• Electrical panel board in option.

Accessories:

• Automatic cleaning system:
  * Cleaning electrovalve N/C 1/2”: cleaning system automation.
  * Filter in Y 1/2”: protection and retention of particles carried by the cleaning water.
  * Ball valve 1/2”: closure of the cleaning connection if necessary.
• Safety switch on top cover.
• Emergency stop.
• Conductive level sensor by rods for equipment operation automation.

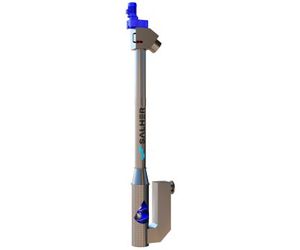

Function:

• Removal of solids equal or larger than 20 mm, waste dehydration and compacting system.
• Designed to be installed in a pumping station.

Characteristics:

• Totally dismountable stainless steel AISI 304 equipment.
• Screen manufactured in stainless steel with perforated mesh.
• Opening size of 20 mm.
• Endless screw manufactured in micro-alloy steel, no central shaft, working angle of 90°.
• Automatic cleaning system with brushes and pressurized water.
• Automatic cleaning system with spray nozzles and pressurized water.
• Waste dehydration and compacting system.
• Collection water tank for pipes diameter up to Ø 250 mm.

Accessories:

• Automatic cleaning system:
  * Cleaning electrovalve N/C 1/2”: cleaning system automation.
  * Filter in Y 1/2”: protection and retention of particles carried by the cleaning water.
  * Ball valve 1/2”: closure of the cleaning connection if necessary.
• Safety switch on top cover.
• Emergency stop.
• Conductive level sensor by rods for equipment operation automation.
