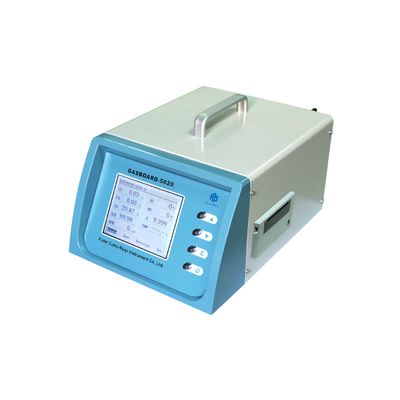

Cubic Instruments - Model Gasboard-5020 -Automobile Emissions Gas Analyzer
Gasboard—5020 emission gas analyzer can be used for measurement of the concentration of automobile emission gas CO ,CO2 ,HC ,O2 and NO (optional). It is based on the pulsable infrared source and single source two beams non-dispersion infrared (NDIR) method, this analyzer is designed with portable and smaller physical dimensions.
Most popular related searches
vehicle emissions gas analyzer
emissions gas analyzer
emission gas
gas analyzer
vehicle emissions analyzer
emissions analyzer
NDIR hydrocarbons
gas emissions
NDIR gas
NDIR hydrocarbons analyzer
- NDIR gas bench with regulated temperature system, high accuracy, better stability
- Extended O2 and NOx sensors
- Cleanable NDIR gas chamber
- Built-in printer for real data printing
- User-friendly PC software
- Measurements: HC CO CO2 NOx O2
- Range: HC: (0~20000) ppm ; CO: (0.00-15.00) %; CO2: (0.00-20.00) %; NOx: (0~5000)ppm; O2: (0.00-25.00)%
- Accuracy
- HC: (0~5000) ppm:Abs. error: ±10ppm;Rel. error:±5%; (5001~20000)ppm:Rel. error:±10%
- CO: (0~10.00) %:Abs. error: ±0.03 %;Rel. error:±3%; (10.01~14.00) %:Rel. error:±10%
- CO2: (0~20.00)%:Abs. error:±0.4×%;Rel. error:±4%;
- NOx: (0~4000) ppm:Abs. error:±25ppm;Rel. error:±4%; (4001~5000) ppm:Rel. error:±8%
- O2: (0~25.00) %:Abs. error:±0.1%;Rel. error:±3%
- *Remark:Abs. error or rel. error whichever is greater
- Warm-up Time: 10min
- Communication: RS-485/RS-232
- Power supply: 100~240VAC,80W
- Display: LCD display
