Teseq

- Model AES 5501 - Automotive Emissions System

From

0

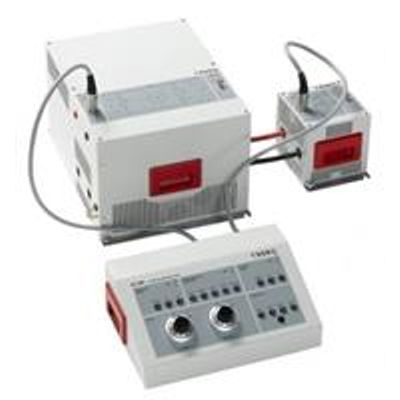

The AES 5501 is a system of electronic and mechanical switches, an artifi cial network, and a unique control station designed for emissions testing to ISO 7637-2. Having gone through meticulous development and intensive beta testing, the AES 5501 contains unique features and uncompromising quality and conformity found nowhere else. Consisting of a four-part solution, the user has complete control over where, when and how the switches can be placed and controlled, including the necessary drive voltages for the relays.

  • The only complete, compliant solution for ISO 7637-2 emissions testing
  • Clean, reliable 100 A operation with very low voltage drop
  • Industry standard relay footprint for a wide selection of relays (one 100 A relay included)
  • Separate control station with automatic, manual or external triggering of the switching behavior

  • Battery current 100 A
  • Inrush current      300 A for 200 ms
  • Battery voltage 0 to 60 VDC
  • Shunt resistor     10, 20, 40, 120 Ω, Ext.
  • Trigger modes     External, internal, manual
  • Battery off time 10 ms – 10 s ±(10% + 10 ms)
  • Battery on time 0.5 ms – 10.5 s ±(10% + 10 ms)
  • Mains input voltage     85 – 264 VAC, 47 – 63 Hz
  • Available relay voltage  12, 24, 36 V (for 42 V applications)
