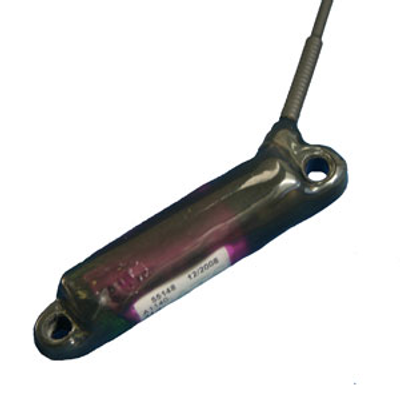

ATS - Model A1100 -Avian Backpack

"B" suffix indicates enhanced range model.

Most popular related searches

Transmitter Type: Crystal controlled 2-stage (“B” suffix denotes 3-stage)
Calibration Tolerance: ± 2.5kHz
Frequency Stability: ± 2.5kHz, -20°C to 40°C
Pulse Rate and Width: Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation: 0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery: Lithium
Activation: By removing magnet
Encapsulation: Electrical resin, water-proof, specific gravity: 1.12

Technical Specifications
