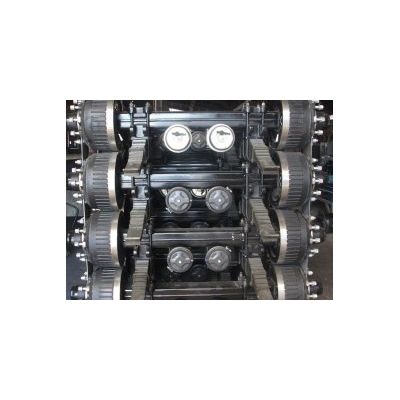

Serin - Model 12 ton -Axel Capacity Drum Brake System
Axle Capacity and Type: 12 ton Axle capacity Drum Brake System. Axle Suspension Type: Mechanial Suspension System. Height of the Hangers (FH/mm) optional: 420-475, 457-512, 482-537 (optional). Tire (Ispit)Distance Between Tires(SP/mm): 1995 mm. Distance Between the Springs (FM/mm): 1200 mm.
Most popular related searches
- Overall distance(P/mm): 2419mm, 2468 mm (optional)
- Brake Type: 420 x 200 Drum Brake
- Tires & Rims: 0 offset 22,5 x 11,75 Rim, 280,8 x335 x10 wheel stud M 22 x 1,5
- Wheel Studs: 10 PCS, M 22 x 1,5
- Sensor: Without ABS Sensor
- Shock Absorber: N/A in The Mechanical Suspension
- Air Bellow: Without in the Mechanical Suspension
- Paint: Balck Pianted
- Tire Types: 385/65 R 22,5 suitable for the tires
- Spring Holder Type: 10 layer leaf spring 12 mm x100 mm,
- Axle Beam (KT/mm): 120 x 120 mm Square Type
