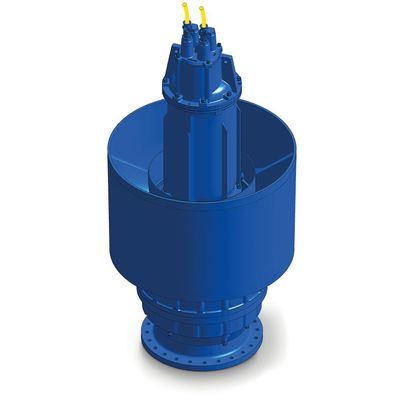

Hidrostal - Axial Column Pump
Hidrostal’s screw centrifugal impeller is ideal for pumps with axial flow direction. Axial Column Pumps were developed for the transport of large quantities of water at low delivery heads. The product range includes a large number of pump sizes.
The Hidrostal Axial Flow Pump is designed for low head applications up to 15m, and flows from 30 to 1400 l/s. It is commonly used when large volumes of liquid have to be transferred at relatively low lift conditions for applications such as Land Drainage Pumping Stations. An Axial-Flow Pump is simple in construction and relatively easy to install and does provide the most cost effective solution for land drainage applications. Based around the standard range of submersible motors, the volute on the low pressure version is replaced with a casing with an axial discharge enabling the pumps to be installed in a tube or concrete chamber. For larger flows, Hidrostal`s sister company Bedford Pumps, has a range of Submersible Axial pumps with flows up to 10,000 l/s.
- Compact, integrated design
- Minimal noise emission
- Large free ball passage
- Low-clogging hydraulic
- High hydraulic efficiency
- Steep, stable pump performance curve
- Flat power curve over the whole pump performance range, therefore no motor overload
- Robust design for challenging applications
- Interchangeable and optional adjustable wear cone
- Efficient motor cooling through pumped liquid
- Various monitoring and protection elements
- Hidrostal - Submersible motor
- Low space requirement
- Simple construction and sealing of the tube chamber
- Low installation costs
The Axial Column Pump is characterised by simple installation in the vertical tube chamber. After lowering into the tube chamber, the pump rests on the horizontal contact surface. The elastomer sealing ring supplied with the pump, reinforced by the mass of the pump, provides the sealing to the pump sump. The pump‘s own mass ensures its position and fixed seat on the counter flange of the tube chamber. In addition, Axial Column Pumps are equipped with a simple but reliable mechanical anti-rotation device.
Hidraulic-Specifications:
- Tube chamber diameter: From 400 mm (16 Inch) to 1500 mm (60 Inch)
- Flow rate: 6 to 1500 l/s
- Discharge head: up to 20 m
- Materials of construction: Cast iron, ductile iron, Hidrohard, stainless steel, Duplex
Wide Range of Applications
Axial Column Pumps are ideal for pumping tasks where high flow rates with low discharge heads are required
- Pumping stations for rainwater and floods
- Watering and drainage systems
- Gentle handling of return activated sludge
- Emulsion-reducing pumping of oily water
- Coastal and flood protection
- Water regulation
- Fishfriendly removal of rainwater and flooding
- Tube chamber diameter: From 400 mm (16 Inch) to 1500 mm (60 Inch)
- Flow rate: 6 to 1500 l/s
- Discharge head: up to 20 m
- Materials of construction: Cast iron, ductile iron, Hidrohard, stainless steel, Duplex
