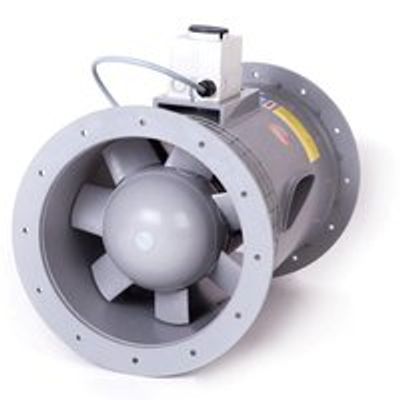

HLU - Model HF A -Axial Fans

Axial fans; can be used in all applications with large air volumes at low pressures. ideal for bottle-cleaning systems in the beverage industry, laboratory exhaust air and all applications with short pipelines. optionally suitable for installation in and extraction from ATEX zone 2.

Most popular related searches

axial fan

industrial laboratory

volume flow from 200 to 50000 m³/h
at a maximum pressure difference of 500 Pa
available in 8 nominal diameters from 200 to 1000 mm

Volume flow :200 to 50.000 m³/h
Pressure difference :500 Pa
Efficiency level :up to 77 %
Nominal diameters :8 nominal diameters from 200 to 1000 mm
Operating temperature :0 – 40 °C
Impeller material :PPs
Drive system :direct drive
Atex :optionally suitable for installation in and extraction from ATEX zone 2
Design :Adjustable blades are adjustable in 5° steps in the range from 20° to 60°.
Connection options :Flange connection

corrosion resistant
compact design
fast availability of the standard variants
suction and discharge openings with the same diameter
motor mounted outside the airflow
use of different motors (explosion-proof motors from size 250) possible
