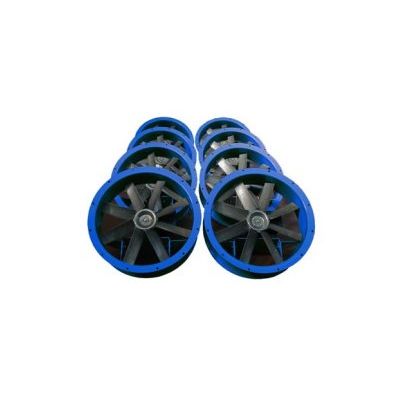

SAVIO - Model SPM Series - Axial Fans
From Axial Fans
These fans are particularly suitable for extraction of polluted air, even damp and/or dusty and they are specially used in foundries, cement factories, paper mills, joinery works , garages and public rooms. Moreover, they are used in unit heaters, cooling towers and all the applications where large flow rates and low pressure values are required.
- Capacity: 240 to 33.600 m3/h – Total Pressure up to 115 daPa
- Temperature of the conveyed fluid: –10°C to +60°C.
- Motors acc. to IEC-Stds: up to 4 kW, 230/400V over 4 kW, 400/690V, 50 Hz, 3-phase, Class F, IP 55, B3
- Standard painting: blue RAL 5007
