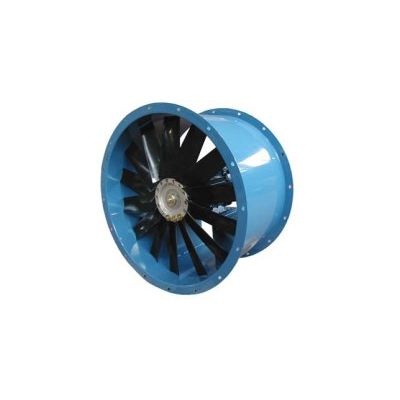

- Model SPMD & SPMDR Series - Axial Fans

From

0

Long casing fan with double flange, are particularly suitable for extraction of polluted air, even damp and/or dusty; they may be installed between channels and are especially used in foundries, cement factories, paper mills, joinery works and garages. Moreover, they are used in unit heaters, cooling towers and all the applications where large flow rates and low pressure values are required. Blade material SPMD from diam. 800 to diam. 1000 mm : resin (glass-charged polypropylene), Aluminium SPMD from diam. 1120 to diam. 1250 mm : resin (glass-charged polypropylene), reinforced resin (glass-charged polyamide), Aluminium SPMD diam. 1400 mm : resin (glass-charged polypropylene) SPMDR from diam. 1120 to diam. 1600 mm :in special heavy-duty Aluminium alloy Diameter sizes SPMD from 800 to 1400 mm. Diameter sizes SPMDR from 1120 to 1600 mm. Capacity from 2.100 to 150.000 m3/h Total Pressure up to 165 daPa Temperature of the conveyed fluid: -10°C to +60°C.

These fans are particularly suitable for extraction of polluted air, even damp and/or dusty; they may be installed between channels  and are especially used in foundries, cement factories, paper mills, joinery works and garages.

Moreover, they are used in unit heaters, cooling towers and all the applications where large flow rates and low pressure values are required.
