Aztech - Hammer Crushers for Crushing Medium and Fine-Grained Material
The hammer crusher is engineered to efficiently crush medium and fine-grained materials of varied hardness, such as sandstone and basalt, as well as recycled waste material like aluminum and electronic equipment. Central to its operation is a rotor with assembled hammers that initiate impact by striking falling fragments, altering their trajectory. This method maximizes collision force with transverse beam plates, promoting further fragmentation through mutual collisions. It is widely used in the mining industry and aggregate mines for stone crushing, and is equally critical for recycling applications, such as demolition work and scrapyards. Horizontal models feature a transverse grate for precise control of output material fractions, while vertical models can crush materials to below 5 mm, accommodating higher moisture levels. Made from durable manganese steel, these machines are designed for longevity and efficient performance.
The hammer crusher is a high-performance machine designed to crush medium- and fine-grained material of varying hardness (for stone, e.g. sandstone – basalt), including recycled waste (for aluminium, electronic equipment). In our offer can be found machines with horizontal or vertical operation, in various sizes (power, feed size, production capacity, finished product fraction).
- max. feed (infeed) up to 800
- finished product (adjustment) 0.5-100 mm
- capacity: up to 160 t/h
In the operating principle of a hammer crusher, the impact plays the most important role. There is a rotor inside the crushing chamber, to which the hammers are assembled. The falling scrap fragments are struck by them, which causes them to change the direction of their fall. This aims to maximise the force with which the material collides with the plates on the transverse beams. It then moves away to further mutual collisions, resulting in even greater fragmentation.
Intended use of machinery
Due to its features, the hammer crusher is readily used by the mining industry and aggregate mines, especially as a stone crushing machine. It is just as often used where recycling counts for entrepreneurs – in the demolition work or in the scrapyards.
The horizontal hammer crushers have the ability to adjust the fraction of material obtained by using a transverse grate at the outlet of the material. As a result, you have full control over the received fraction of the finished material. The machines are intended for crushing materials with a moisture content of up to 30%!

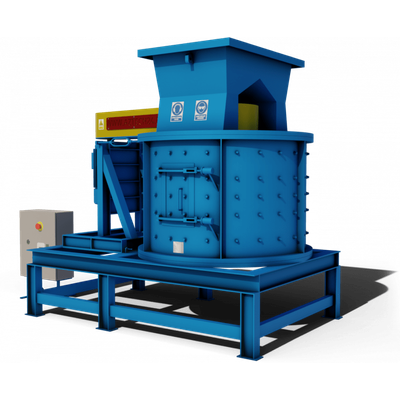

The vertical hammer crushers are characterised by the crushing of material to a fraction below 5 mm. The characteristics of the machine and the absence of a grate/screening unit allow materials with a higher moisture content to be crushed, with the possibility of wet crushing (feeding the water jet together with the material to be crushed).
Horizontal and vertical models of hammer crushers
In all of our hammer crusher models, the inner walls and hammers are made of high-grade and wear-resistant manganese steel, making the use of the machinery effective, long-lasting and economical.
