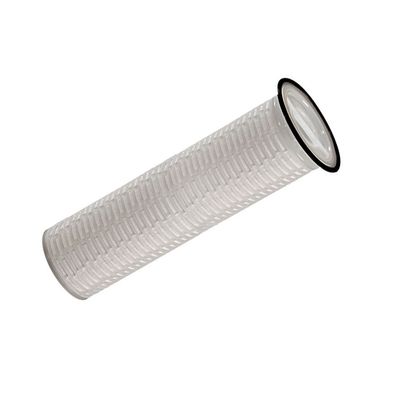

ARCModel HFB -Bag Style High Flow Filter

SHARE

This kind of cartridges combine the performance advantages of cartridge filters with the ease use of bag filter systems. It offers unique combination of benefits and unmatched economics. Filtration customers no longer have to choose between cartridge and bag technologies. The pleated media increases the effective filtration area with high flow and long service life.

Most popular related searches
  • Outer Cage: Polypropylene
  • Inner Cage: Polypropylene
  • Endcaps: Polypropylene
  • O-ring & Gasket: Silicone, EPDM
  • Filter Media: Polypropylene

  • High performance filter media
  • Outide-to-inside fluid flow
  • High surface area
  • Long service life
  • FDA listed all polypropylene components

  • OD: 6"(152mm)
  • Length: 40",60"

  • Max Operation Temperature: 80°C
  • Maximum Pressure differential: 3.4bar at 60°C
  • Recommended Change out DP: 2.4Bar at 20°C

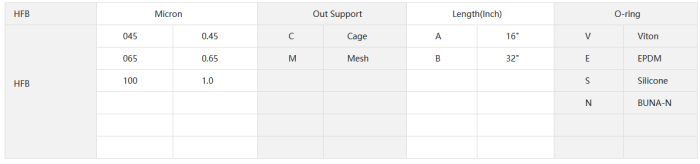

  • Part No=HFB+Micron+Out support+Length+O-ring
  • EG: A 32 inch 0.45um filters with out cage and epdm O-ring
  • The Part NO:HFB045BE
