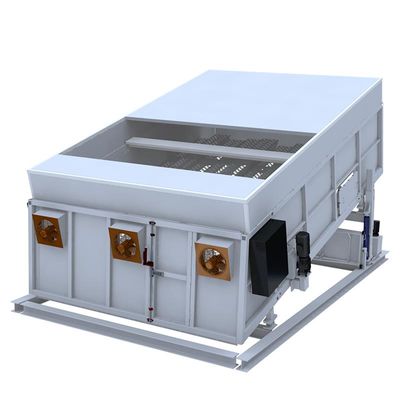

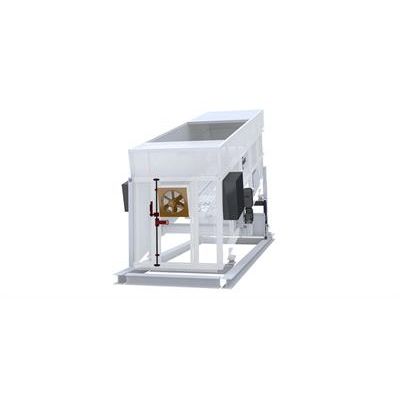

- Model SB 40 - Ballistic Separators



Widely known for their reliability and efficiency, Bianna Recycling’s wide range of ballistic separators are used in RSU, EELL and CSR plants. There is the possibility to adjust different parameters in order to adapt automatically  the type of material, from the fan speed to the equipment slope. The equipment is especially designed to make cleaning and maintenance easier,  and it is supplied with different devices which make the inside of the ballistic as ergonomic and comfortable  as possible.

  • 01 • Raised roof
  • 02 • Impulsion fan
  • 03 • Door and access ramp
  • 04 • Electric pannel
  • 05 • Maintenance cart
  • 06 • Crankshaft maintenance access.
  • 07 • Hydraulic lifting system.
  • 08 •Centralised lubrication system
  • 09 • Gearmotor with brake

The equipment includes a ramp with longitudinales perforate plates which make a ballistic type of movement generated by two crankshaft placed below them. The equipment slope and the plates rotary movement allows the input flow to be separated in three different fractions.

3D: Rolling fraction, bottles, cans, light packaging, etc.
Fine fraction: sand, remaining of organic fraction, etc.
2D: Flat fraction, paper, cardboard, etc.

  • Screening area: 10 m2
  • Maximum capacity: to  70 m3/h
  • Power: 5,5 kW
  • Paddle number: 4
  • Funs number: 2
  • Weight: 6.550 kg.
  • Length: 7.750 mm
  • Width: 2.392 mm
