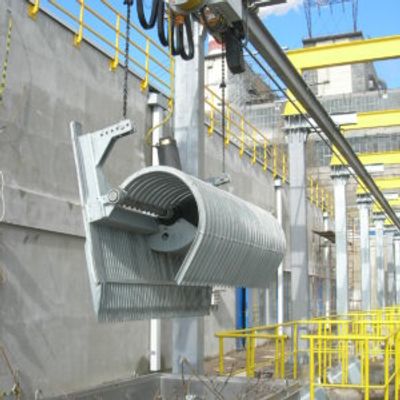

Profilter - Bar Screen Cleaning Grabs

A complete bar cleaning equipment includes:

Most popular related searches

Exemplary operation algorithm

An exemplary cycle of bar screen cleaning includes the following steps:

the hoisting crane with the grab moves to the designated screen area and stops over its first portion of the screen to be cleaned,
the open grab is lowered and its prongs slide between the screen bars, collecting the debris from the water,
when in its bottom position, the grab automatically closes and then travels upwards with the collected debris,
once the grab has reached its upper position, the hoisting crane travels to the dump area and the grab opens, releasing its content into the waste container or collector,
after unloading the debris, the hoisting crane travels back to the screen and is stopped over its next portion to be cleaned,
the operation cycle is repeated until the whole screen is clean.

Exemplary PROFILTER’s offer

A typical PROFILTER’s offer includes:

design work including intake grates, cleaning grab and support structures,
delivery of complete equipment with necessary technical and operational documentation, declarations of conformity, Polish Technical Inspection Office certificates,
delivery of control cabinets, cables and other electrical components,
assembly of the control cabinet and wiring,
assembly or supervision of the assembly of mechanical and electrical equipment,
trial run, tests and measurements,
documentation, acceptance tests, formalities related to the equipment approval for service,
equipment start up,
instruction for the operating staff.
