Barge Master - Model BM-T40 -Motion Compensated Crane

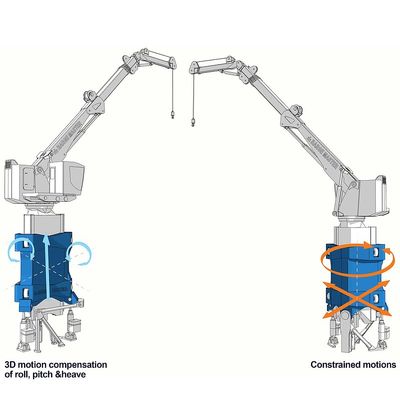

The BM-T40 Motion Compensated Crane by Barge Master is engineered for enhanced offshore operations, providing controlled lifting capabilities in challenging sea conditions. This crane significantly extends workability, particularly in areas like the North Sea, from 180 to 330 days by compensating for vessel motion at its base, ensuring stability of the operator cabin and the load. With a compact design, it can lift up to 32 meters above sea level, handling loads of 5 to 15 metric tonnes at varying reaches. Certified for manriding, the crane is suitable for transferring personnel safely and managing typical loads such as hoses, tools, and turbine parts. Its cutting-edge motion compensation technology involves hydraulic cylinders that counteract heave, roll, and pitch motions, controlled via motion reference units for precision. The system's versatility allows integration into new builds or retrofitting, making it an adaptable solution for maintenance and platform supply vessels.
