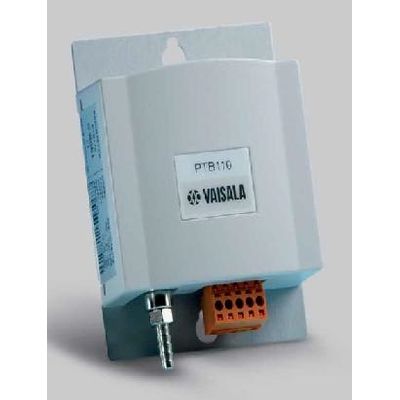

Vector - Model PTB110 -Barometer
The PTB110 Barometeri s designed both for accurate barometric pressure measurements at room temperature and or general environmental pressure monitoring over a wide temperature range. It uses Vaisala``s BAROCAP(R) silicon capacitive sensor to measure barometric pressure over a 500 to 1100 millibar(hPa) range with an output of 0 to 2.5v and a low current consumption, making it suitable for use with a wide range of data loggers.
Most popular related searches
barometric pressure measurement
NIST traceable calibration
barometric pressure
barometer
pressure monitoring
capacitive sensor
data logger
traceable calibration
wind assessment
weather sensor
- Accuracy of +/-0.3 mb? (hPa) @ +20 degC
- Long-term stability +/-0.1 mb (hPa) per year
- Output voltage 0 to 2.5VDC = 500 to 1100 mb (hPa)
- Current consumption less than 4mA
- On/off control with external trigger
- Mountable on a 35mm wide DIN rail
- NIST traceable calibration (certificate is included)
The PTB110 is a popular choice for wind-assessment and general-meteorology applications where a barometer is required.
