FLUX - Model Type F 427 S -Barrel Pump for Aseptic Applications
Features and benefits: all wetted parts are made of stainless steel, ETFE or PTFE,to be stripped for cleaning and/or sterilization with a minimum of effort,no contamination of the liquid being pumped by shaft lubricants,optimum barrel emptying due to ideal impellor design,also available in 3A version.
Most popular related searches

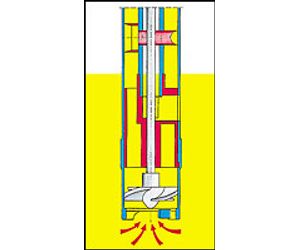

Functional View:
- The sanitary pump can be stripped down within a few seconds because of its ingenious design. The F 427 does not have any inaccessible voids. This allows you to completely clean the pump at any time.
The pump is available in:
stainless steel 316 Ti (S)
Immersion lengths:
27", 39" and 42" mm

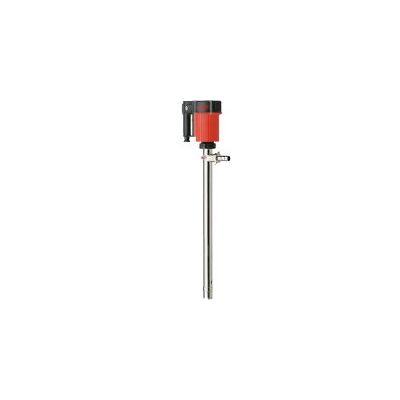

The picture shows:
Pump Type F 427 S with commutator motor F 457
Performance Data
- obtained with water at 68 °F at the pump outlet
- Delivery rate max. 63 GPM
- Delivery head max. 42 FT water column
- Temperature max. 248 °F
