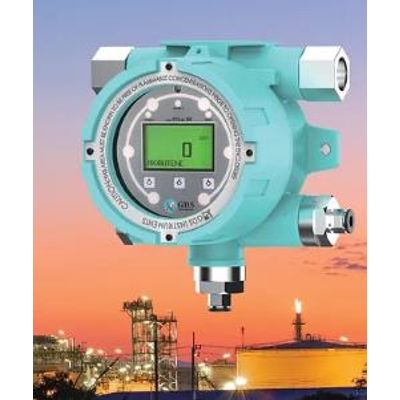

GDS - Model PIDScan 600 -Basic Fixed VOC Detector

• 4-20 mA analog and MODBUS RS485 output ; HART as optional.

• PID sensor highly resistance to humidity interference

• Explosion proof EEx d IIC T6 for hazardous application

• With built-in diaphragm pump to draw in sample gas

• Magnetic interface for non-intrusive access to menu

• Large numerical and graphical dot-matrix display with backlight sensor

Most basic fixed PID detector

to ensure affordability and competitivness, and yet is equipped with high performance ceramic PID lamp

Built-in diahragm pump

to ensure reliable, improved life and operation performance of the PID lamp

Unique ceramic-glass PID sensor

has proven to yield stable performance and long-sensor life beyond expectations

Built-in temperature and humidity sensors

to ensure accurate and real-time compensation measurements under all weather conditions

PID sensor                              10.6 eV

Range / Resolution  /                0 - 2000 ppm / 1 ppm (high range version)

(optional range)                       0.0 - 100.0 ppm / 0.1 ppm (standard version) /  (0.0 - 1000 ppm)

                                                 0.00 - 10.00 ppm / 0.01 ppm ( ultra sensitive version ) / ( 0.00 - 20 ppm)

                                                 *  with Temperature and Humidity compensation on board

Pump                                        Built-in diaphragm pump

Relay contacts                         SPST dry contacts (x3)

Ring LEDs Alarm                     Built-in ring alarm LEDs; Yellow and Red

Response Time                       T90 < 10 sec (improved)

EX Approval                            ATEX II 2G Ex d IIC T6  Gb

                                                UL Class I Div I Group B, C and D

IP Rating                                 IP66 EMI / RFI

Compliance to EMI / RFI         Directive 89 / 336 / EEC

Power                                     9 - 36 Vdc, max. 125 mA at 24 Vdc

Cable                                     3-wire shielded; max. 1 kOhm at 24 Vdc

Output  / (option)                   4 - 20 mA , HART (option)

                                               Modbus RS 485

                                               SPST relay contacts (x2), Fault relay (x1); max. 30 V, 2 A.

Sampling method                  Built-in diaphragm pump (~500 ml / min)

Display                                  Graphic LCD 128 x 64 pixels, with backlit

User interface                       Non-intrusive using magnetic key

Operating Cond.                  Temperature: -20 degC to +60 degC (-4 degF to 140 degF)                                                                      Humidity: 0 - 95%RH (non-condensing)

Physical Data                        Weight: 3.5 Kg

                                              Dimension: L 124 x D 125 x H 198 (mm)
