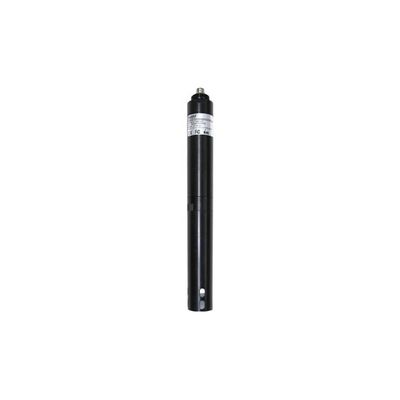

Aquas - Model SMR04 Series -Basic Water Quality pH Analyzer
The pH Analyzer is connected directly via RS485 communication interface, providing simple, reliable, cost-saving process data with remote monitoring, calibration, configuration and diagnostics capabilities. Housing in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission, the pH Meter is ideally used in water/wastewater industry.
- All-in-One Compact Housing, Built-in Transmitter and Sensors
- Robust IP68 Water Submersible Protection
- Plug & Play, On-line Realtime Measurement
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- 1500 N Tensile Strength Kevlar Reinforced Cable
- Surge Protection for Power and RS485 Communication
- RS485 Digital Communication, Minimize Cabling and Engineering Cost
- Standard Modbus RTU Protocol, Direct Connected with PLC, HMI
- Onboard Memory Allowing Users Easily Calibrate and Configure Sensor at Lab and Distribute to Various Fields Sites
- Software Tool for Data Monitoring, Calibration , Configuration and Diagnosis
- Measurement range : 0 ~14 pH
- Accuracy : ±0.1 pH
- Resolution : 0.01 pH
- Operation pressure : Max. 10 Kgf/cm2
- Operating temperature : 0 ~ 85 °C
- Process flow rate : Min. 0.1 m/s
- Response time : 1 sec
- Protection : IP68
- Temperature sensor : Pt1000
- Temperature measurement range : 0 ~ 85 °C
- Temperature accuracy : ±0.5 °C; ±0.1 °C (optional)
- Process Connection : M26x1.5
- Sensor Material : Glass
- Housing Material : POM
- Dimension : Φ 26 Χ 221 mm
- Weight:
- analyzer: approx. 150 g
- cable: 80 g/m
- Drinking water, surface water, groundwater, industry, water treatment, wastewater
- Output Signal: RS485 (Modbus RTU protocol), 19,200 bps, 8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
- Data Resolution: 16 bits (0.001% FS)
- Surge Protection: 4000 V DC
- Power: 3.6~12 V DC ±10%, 20 mA
- Protection: polarity, overload, short circuit
- Safety: CE, FCC
The analyzer complies with BS 2586:1979 and BS EN 60746-2: 2003 which consists of a pH electrode, a signal amplifier, and a reference electrode. The pH sensing electrode acts as a transducer that generates and transmits different levels of voltage based on the concentrations of free hydrogen ions in water. The amplifier increases the signal so that it can be measured. The isolated reference electrode produces a baseline signal that is compared to the response from the active plt electrode, generating a pH unit measurement.
