Potential - Basket Screen

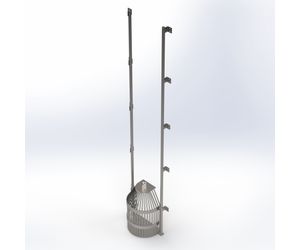

The basket screen is a coarse bar screen, installed in pumping stations and manholes. The basket is lifted and lowered in a desired path guided by rails via an electric hoist. The rails are shaped in the upper area which facilitates emptying of the basket. The basket is constructed of stainless steel sections with a gap of 10 – 40 mm. When the screen basket is raised, the feed is automatically blocked by a drop screen so that no screenings can get into the outlet channel while the basket is being emptied. As a leading basket screen manufacturer, Potential Engineering provides reliable solutions for wastewater treatment.
Basket screens, essential for small treatment plants, offer simple yet effective pre-treatment by safeguarding downstream equipment from damage and enhancing further treatment processes. With options for manual or electric lifting hoists, they can be easily raised and lowered for cleaning, making them ideal for deep structures. Potential Engineering Basket Screens come in perforated plates, screen bars, or mesh options, providing versatile and customizable solutions for efficient pre-treatment in various applications.
- Flow: Up to 200 m3/h
- Opening filtration: Bars or perforated plate: 2 to 25 mm
- Width of the screen: Up to 900 mm
- Depth: No limits
- Installation angle: 90° Vertical
- Frame material: Stainless steel 304 or 316L
- Guides material: PA 66 + MO Molybdenum
- Surface treatment: Scouring and passivation
- Power gear motor: 0.37 kW to 1 kW
- Power supply: 3 phases, 400V, 50 Hz
- Customized design
- Robust, durable and reliable
- Low maintenance cost
- Easy to install, operate and maintain
- Safe operation in hazardous area
- Spares are easily available
