+GF+ Signet - Model 5600 -Batch Controller

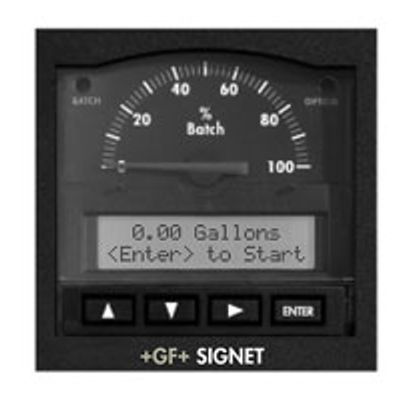

The +GF+ SIGNET 5600 Batch Controller is an extremely refined instrument that combines complex control capability with operational simplicity. Select either Simple or Advanced mode to limitfeature options to suit your specificbatch requirements, and make changesto batch volume quickly and easily. Tworelays and one analog output providethe means to increase batch precisionwhile dramatically reducing the possibil-ity of water hammer in a system. Batch progress is displayed on the analogdial, while the backlit LCD is used forcalibration, set-up, and to show total-ized flow volumes. The controllersrequire 12 to 24 Volts, AC or DC, andcan be used with any +GF+ SIGNET Flow Sensor with a frequency output.The intuitive software design and four-button keypad arrangement is userfriendly, and the NEMA 4X/IP65 integ-rity of the front panel can be extendedto the entire enclosure by using theoptional Rear Cover Kit.
- Simple push-button operation
- Intuitive Software Design
- Easy Batch Volume Entry
- Simple and Advanced operating modes
- Remote Start, Stop & Resume
- Auto-calibration
- Two Stage Shutdown Control
- Manual or Automatic Overrun Compensation
- Estimates Time to Batch Completion
- Overrun Alarm
- Missing Signal Alarm
- Advanced Valve Control
- End-of-batch Trigger
- Count-up or Countdown to Batch Completion
- Dual Totalizers
- Tamper-proof Security Code
- Non-volatile memory
- Versatile low voltage power requirement
- 1/4DIN,NEMA4X/ IP65 enclosure
- Hard-coated, High Impact & UV resistant polycarbonate front face
- Batch Processes
- Filter Backwash Initiation
- Chemical Addition
- Canning & Bottling
- Operating Range: : 0.5 Hz to 10 kHz, optically isolated
- Power Requirements: : 12 to 24 Volts, AC or DC, unregulated, 50 to 60 Hz, 10 W max.
- Display:
- Analog: Reversible dial: 0 to 100% or 100 to 0%
- Digital: Backlit LCD, 2 x 16 alphanumeric character
- Batch Size: 0 to 999,999 engineering units
- Dual Totalizer: 8-digit resettable and non-resertable
- Current Output:
- 4 to 20 mA, non-isolated, internally powered
- Loop impedance: 350O max. @ 12V, 950O max. @ 24V
- Accuracy: ± 0.1%
- Configurations: Batch completion, valve control, or end of batch
- Alarm Contacts:
- Two SPDT relays: 5A @ 30VDC, 5A @ 125VAC, or 3A @ 250VAC max.
- Batch: Batch in progress
- Option: Two-stage shutdown, overrun alarm, end of batch, or missing signal alarm
- Additional Functions:
- End of batch pulse, Remote start, Stop & resume
- Accuracy: ± 0.5% of reading
- Materials:
- Enclosure: ABS Plastic, NEMA 4X/IP65
- Keypad: Silicone Rubber
- Panel and case gasket: Neoprene
- Window: Hard-coated polycarbonate
- Shipping Weight:0.8 kg (1.8 lbs.)
Environmental :
- Operating temperature: -10 to 55° C (14 to 131 °F1
- Relative humidity: 0 to 95%, non-condensing
