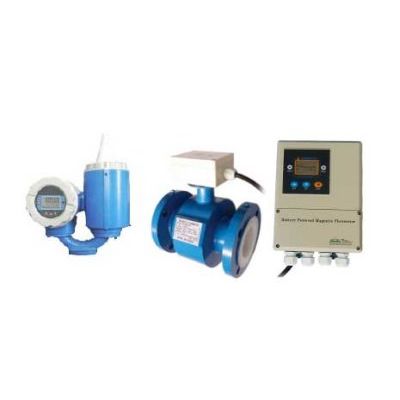

Spire Metering - Model SpireMag Series MAG888-DC -Battery-Powered Magnetic Water Meter
The SpireMag series MAG888-DC flowmeter is a battery-powered high-performance magnetic water meter designed for water and wastewater industry to accurately measure the water flow in closed conduits. MAG888-DC is ideal for remote locations in municipal, irrigation, wastewater treatment and industrial liquid processes industries where no power connection is available.
Most popular related searches
magnetic water meter
water metering
water meter
water network monitoring
drinking water meter
water network
raw water
wastewater industry
drinking water
leak detection monitoring
- Stand alone water meter with battery lifetime for more than 4 years. Easy battery change
- Billing grade with class 0.5 accuracy
- Plug and play. No need for programming, no need for wiring
- Compact and rugged design. IP68 submersible
- Large measurement range. Bi-directional
- No moving parts to wear and tear. Maintenance free
- Short straight-pipe run requirement. Suitable for any desired installation location
- Optional GSM/GPRS wireless and turnkey data service.
- Accurate water metering for water consumption and revenue generation
- Water metering in remote locations
- Potable water metering
- Irrigation water metering
- Wastewater and raw water metering
- Water distribution network monitoring
- Leakage detection
- Pump performance monitoring
- Nominal Size: DN15 (1/2”) ～ DN800 (32”)
- Accuracy:
- ±0.5% standard
- For higher accuracy, please contact support@spiremt.com for availability
- Measurement Range : 0 ～±15m/s (±49ft/s)
- Nominal Pressure:
- DN15-DN40 (0.5” – 1.5”): 2.5MPa (362psig)
- DN50-DN250 (2”-10”): 1.6MPa (232psig)
- DN300-DN600 (12”-24”): 1.0MPa (145psig)
- DN700-DN8000 (28”-32”): 0.6MPa (87psig)
- Higher pressure rating is available upon request
- Medium Electrical Conductivity: ≥ 20us/cm
- Medium Temperature: -10
