Baykon - Model BX22S -Weighing Indicator
BX22S is a high quality general purpose weighing indicator in stainless steel housing. Its optional alibi memory provides usage with non-approved PC software for approved scales.
BX22SL, the increased lightning & surge voltage protected variant of BX22S, has a very high protection against lightning on its load cell and power supply connections. With its 2 pcs galvanically isolated RS232C ports, BX22SL has important advantage for industrial weighing applications, in particular for weighbridges.
BX22S operation modes; basic weighing, classifying supported with color changing multi-color display and livestock weighing with smart dynamic filter. With IP67 protected stainless steel housing, BX22S perfectly fits to wet, hygienic and harsh areas. BX22S and BX22SL have rechargeable Li-ion long life battery.

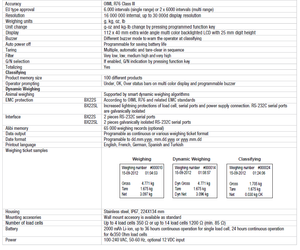

Standard features
- Stainless steeI, IP67 protected for wet, hygienic & harsh areas
- 25 mm wide angle LCD display with multi-color backlight
- Up to 30 000d display resolution
- Long life Li-ion rechargeable battery
Lightning & Surge Voltage Protection
- Protected load cell entry
- Protected power line entry
- Galvanically isolated 2 piece RS232C serial interfaces
- Increased EMC immunity
Typical Applications
- Basic weighing with multiple tare, auto tare, auto clear tare, auto print, unit change, etc.
- Classifying with color changing display at Under, OK and Over, status bar on display,100 product memories, acoustic warning
- Livestock weighing with smart dynamic weighing algorithm
- Weighbridges againts lightning and electrical discharge
- Industrial bench and floor scales in harsh environment
