Baykon Inc. products

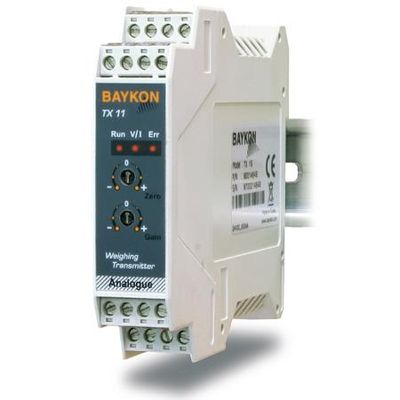

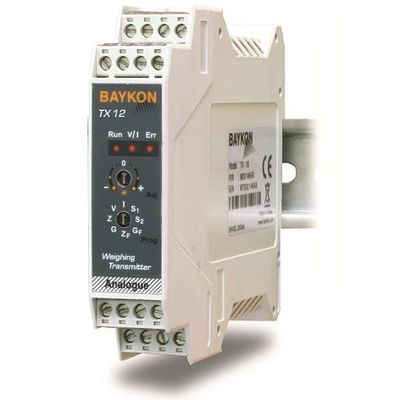

Analogue output is programmable to 4-20 mA, 0-20 mA, 0-10 V or 0-5 V. Its high quality analog and digital hardware minimizes long time zero and span drifts. Its high resolution, matched and normalized analogue output gives advantage calibration at PLC and changing the instrument without recalibration.

eCal electronic calibration gives advantage easy calibration of the high capacity tanks and silos. Its additional fast calibration feature enables performing calibration similar to digital indicators.

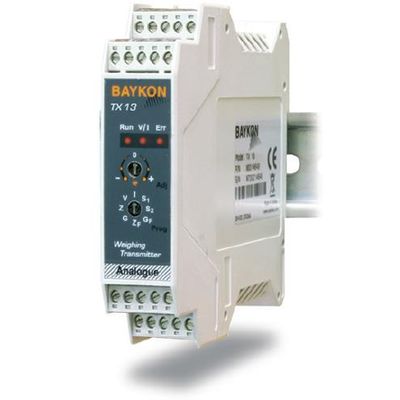

Programmable smart filter of TX13 minimizes the environmental vibration to produce the best filtered signal to your PLC for your weight and force measurement systems. Its high quality analog & digital hardware eliminates zero and span drifts caused by temperature changes and provides perfect stability for long term unlike traditional analogue transmitters.

Analogue output is programmable as 4-20 mA, 0-20 mA, 0-10 V, 0-5 V. TX13 MB has additionally -10 to 10 V analog output range. All instruments are normalized and matched in the production for direct replicement when calibration done at the PLC side and to provide highest accuracy for electronic calibration (eCAL).

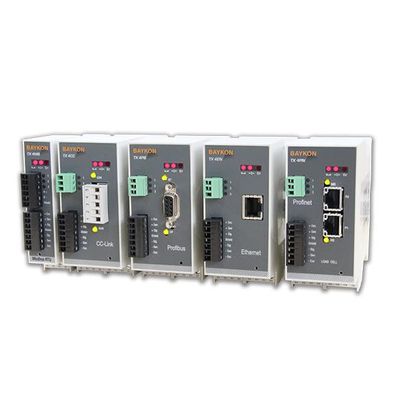

TX4 digital transmitter family is designed for static or dynamic weighing and force measurement processes to provide fast and accurate digital data through RS-232C, RS-485, Ethernet TCP/IP and bus systems as Profibus, Modbus TCP, Modbus RTU, Profinet, CANopen, EtherNet/IP, EtherCAT, CC-Link, Powerlink. TX4 transmitters have a parallel port including 1 x Output and 2 configurable as Inputs or Outputs which can be controlled directly by PLC.

TX4 transmitters are programmed and calibrated via PC by BAYKON xFace software. Weighing functions such as Zeroing, Taring, Power-On zero, net indication at power on, Motion detection, configurable vibration suppression digital filter and electronic calibration without test weights ( eCal ) are important features. DIN rail type enclosure provides easy montage in control panel.

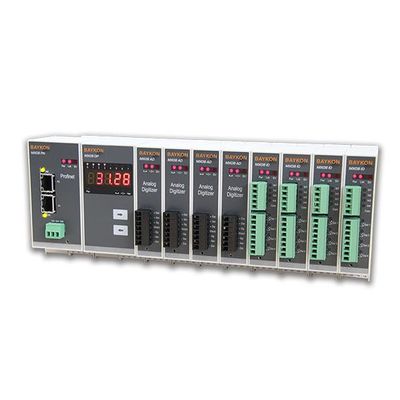

MX08 is a multichannel transmitter is designed to integrate analog measuring data of multi weighing, force or torque measuring systems into control PLC/PC in proper digital data format. MX08 family is programmed and calibrated via PC by BAYKON xFace software. MX08 main advantages are; fast conversion rate, fast response and anti-vibration adaptive digital filter, weighing functions, powerful calibration facilities including eCal, calibration without test weight.

Fully matched production provides direct replacement without calibration in Count mode. The maximum configuration is; Fieldbus gateway, up to 8 Analog Digitizer, 8 Digital I/O units, Local Display unit. DIN rail installation provides easy montage.

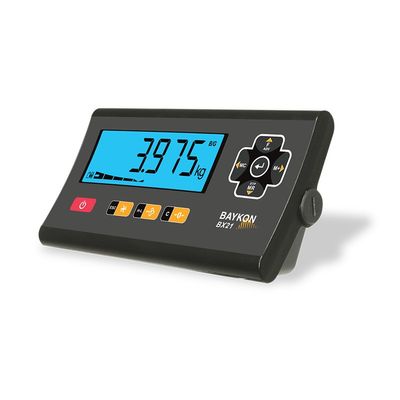

BX21 is low cost, high quality general purpose weighing indicator in plastic housing. The instrument is approved by Weights & Measures Authorities for use in Accuracy Class III applications with intervals according to OIML R76.

Weighing, Counting, Classifying and Dynamic Weighing for animals are standard operation modes. It has 100 Average Part Memories for Counting and 100 product memories for Classifying.

Under, Ok, Over Status bars and programmable buzzer for operator prompting are available is classifying mode. Easy and practical operation via navigation keys with two programmable function keys and 25mm wide angle, multi colour back LCD display. BX21 is powered by AC adapter and rechargeable Li-ion long life battery is available as an option. Stand and wall mount accesories are available.

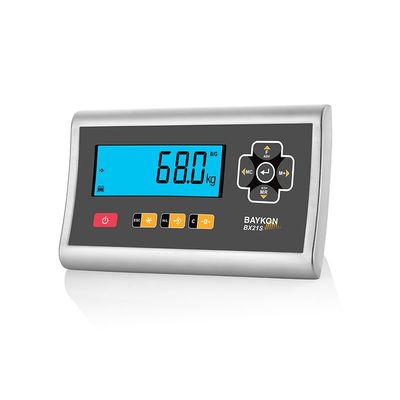

BX21S is low cost, high quality general purpose weighing indicator in stainless steel housing. The instrument is approved by Weights & Measures Authorities for use in Accuracy Class III applications with intervals according to OIML R76.

Weighing, Counting, Classifying and Dynamic Weighing for animals are standard operation modes. It has 100 Average Part Memories for Counting and 100 product memories for Classifying.

Under, Ok, Over Status bars and programmable buzzer for operator prompting are available is classifying mode. Easy and practical operation via navigation keys with two programmable function keys and 25mm wide angle LCD display with multicolor backlighting BX21S is powered by AC adapter and rechargeable Li-ion long life battery is available as an option.

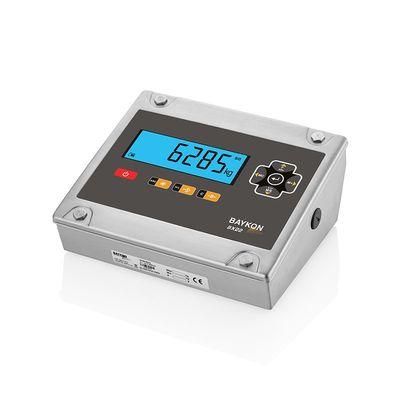

BX22S is a high quality general purpose weighing indicator in stainless steel housing. Its optional alibi memory provides usage with non-approved PC software for approved scales.

BX22SL, the increased lightning & surge voltage protected variant of BX22S, has a very high protection against lightning on its load cell and power supply connections. With its 2 pcs galvanically isolated RS232C ports, BX22SL has important advantage for industrial weighing applications, in particular for weighbridges.

BX22S operation modes; basic weighing, classifying supported with color changing multi-color display and livestock weighing with smart dynamic filter. With IP67 protected stainless steel housing, BX22S perfectly fits to wet, hygienic and harsh areas. BX22S and BX22SL have rechargeable Li-ion long life battery.
