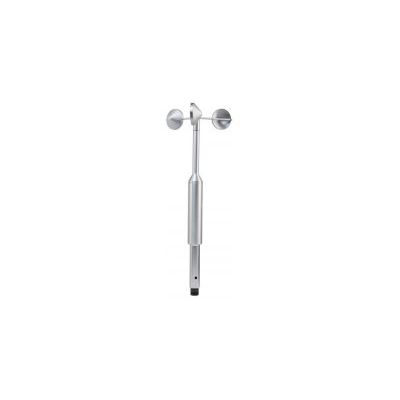

Belfort - Model 010C -Wind Speed Sensor

The 010C and 020C are made of stainless steel and anodized aluminum components and are functionally more reliable than any other sensors of their kind:

• Built-in electrical field surge protection greatly reduces problems associated with static fields, near-miss lightning hits and poor grounding systems
• Inclusion of Met One Instruments’ internal heater (AC use only) provides positive clean aspiration through the bearings, thereby greatly increasing sensor bearing life
• Optional, external de-icing heater sleeve for applications where freezing rain, ice and low wind speeds may be encountered

• ^{Performance Characteristics}
• ^{Maximum Operating Range: : 0.5 mnh (0.22 m/s)}
• ^{Calibrated Range: : 0 -l/0 mph (0 -50 m/s)}
• ^{Accuracy: : ±1% or 0.15 mph (0.07 m/s) Resolution < 0.1 mph or m/s}
• ^{Temperature Range: : -50°C to +65°C (-58°F to +149°F)}
• ^{Distance Constant: : less than 5 It (1.5m) of flow (meets EPA specifications)}
• ^{Electrical Characteristics}
• ^{Power Requirements: : 12 VDC at 10 mA, 12 VDC at 350 mA for internal heater}
• ^{Output Signal: : 11 volt (pulse frequency equivalent to speed)}
• ^{Output Impedance: : 00 Ω maximum}
• ^{Physical Characteristics}
• ^{Weight: : 1.5 Ibs (.68 kg)}
• ^{Finish: : Clear anodized aluminum; Lexan cup assembly}
• ^{Cable & Mounting}
• ^{PN 1953 : Cable Assembly; specify length in feet or meters}
• ^{Mounting: : PN 191 Crossarm Assembly}
• ^{Alternate Wind Sensors}
• ^{010C-1 Distance Constant: : 15 ft. (4.6 m) aluminum cup assembly (meets EPA specifications)}
