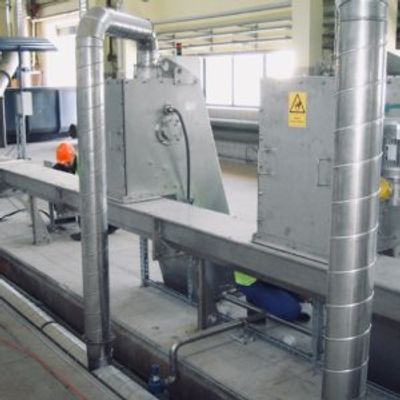

Profilter - Model CB-MT Type -Belt Conveyors

• frame made of stainless steel grade 1.4301,

• drive unit, including a drive drum, self-adjusting bearings and a gear-motor; the drive unit power is individually determined depending on the conveyor length and width, tilt angle and other specific requirements,

• conveyor belt made, depending on the intended use, of rubber or other material, e.g. plastic,

• tightening drum and drive components, made of stainless steel.

The rollers are made of 60.3 mm or 88.9 mm diameter tube, with bearings at both ends. The bearings are sealed on both sides. The carrying rollers are usually mounted approximately every 0.5 m, and the flat return rollers are mounted ca. 1 m apart. If a conveyor is to be fitted with a weight measuring system, one of the roller sets is mounted on a rocker arm with suitable strain gauges attached to it.

The belt conveyor is fitted with safety covers to prevent accidents during operation.
