Belts Conveyor

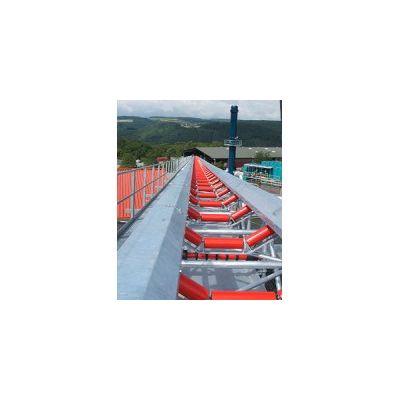

Conveyor systems for transporting materials gently, when space availability limited. Very long conveyor distances can be bridged with a single conveyor unit. Our troughed conveyor belts are manufactured as strong sheet steel equipment, or with tubular frames. Depending on the conveyor application, two-part or multi-part troughed or flat belt runs are available. As a rule, the reversing station is a belt tensioning drum. It is driven by gearmotors, designed as slip-on motors or chain drives, or by very compact drum motors.
Variants:
- Troughs or flat belts
- Curves and telescoping conveyor belts
- Angled and Z-conveyors
- Smooth, sidewall, and cleated belts
- Belts resistant to oil, grease, and chemicals
- Mobile belts
Equipment:
Funnels; side bars; top and bottom belt covers; various belt cleaning systems, plow wipers, blade and spring wipers or brush rollers; electrical and control elements, speed and off-track detectors; cages; pivoting, rotating, and travel chassis, manual and electric
Areas of application:
- Transport of bulk aggregate materials from municipal and industrial plants
- Thickened, dehydrated, dried sludges
- Sand and sand-water mixtures
- Matting materials such as screenings, bio-residues, trash sorting
- Paper and food industries
Advantages overview
- Gentle transport of the medium
- Low energy input for high conveying capacity
- Reversible operation is possible
- Space-saving installation and construction due to low design height
- Only one conveyor unit needed for very long conveyor distances
Dimensions are variable, and are adapted to each application.
