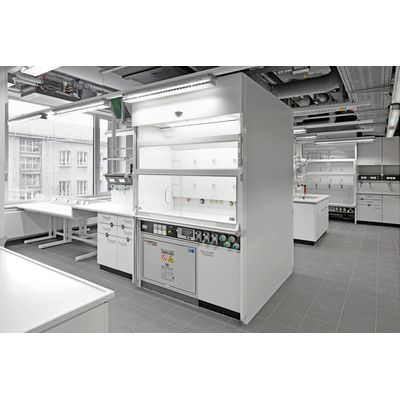

Wesemann - Model DELTAguard -Bench-Mounted Fume Cupboard

Due to a low overall height of 2405 mm, the best possible space utilization. Fume cupboard tested and certified in accordance with DIN EN 14175. Optimized contamination retention capacity with simultaneously low exhaust air flow rates. Worktop and interior surfaces as required.

Most popular related searches

fume cupboard

air monitoring system

air separation system

digestate

Maximum usable interior space due to narrow sides
Optimized space utilization due to a construction height of only 2405 mm
Synchronous running telescopic sliding window for high operating comfort
Worktop with preformed, flow-optimized front rim
Exhaust air system for a full-surface extraction above the worktop
Maintenance-friendly due to large inspection panel and easy-to dismantle fittings
Module with splash protection
Ergonomically designed sash handle bar for easy one-handed operation of the sliding window with twist-release mechanism
Electric panels on both sides of interior
High installation density possible, no overlapping of the media and stand levels
Standard battery-backed exhaust air monitoring unit
Function indicator integrated in the pilaster strip
Stand rod holder on the rear wall
Extensive accessories and options, such as automatic sliding window drive
Optional: Substructure or hazardous substances cabinet
Optional: Sash with 3 / 4 cross slides
Optional: Internal sockets with external switching
Optional: Substructure with cabinet or hazardous substances cabinet
Optional: Exhaust air control 2495 mm OK-suction nozzles
Optional: Drip cup
Variant: Total depth 1070 mm, usable depth 870 mm instead of 710 mm
Variant: Protect technology with active air injection system

Note: Separate types of fume cupboards are available for high thermal loads with acid digestions and the handling of unsealed radioactive substances
