Schleuniger PullTester - Model 25 -Benchtop Pull Testing Machine

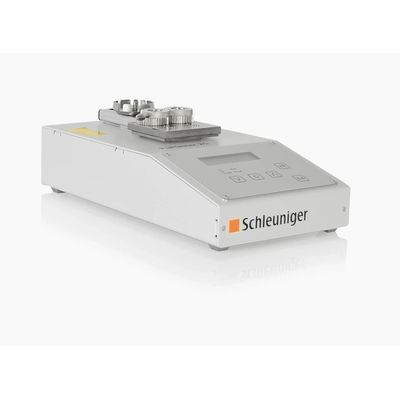

The benchtop PullTester 25 measures pull forces on crimp and ultrasonic metal welding connections, with two scales ranging up to 500 N for small and up to 1,000 N for larger wires. Pull test values are critical for quality control and assurance. Hand-actuated or pneumatic pull test devices can give inconsistent data. The Schleuniger PullTester 25 is equipped with a speed-controlled motor, ensuring consistent pull rates for repeatable and accurate data. Pull forces can be measured in pound-force, Newtons, or kiloponds. The standard 12-position terminal holder accommodates a wide variety of crimps to suit most applications. More terminal holders are available upon request.This versatile machine has two measuring ranges, enabling the use of its 500 N (110 lbf) scale for small wires while easily switching to a 1,000 N (220 lbf) scale for larger wires. This dual-range capability ensures the highest accuracy for the widest range of applications.
PullTester 25
Metric
- Analysis software: WinCrimp
- Measuring range, quantity: 2
- Pull-out speed, quantity: 2
- Additional equipment: various holders
- Power source: Electric
- Memory capacity: N/A
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: Normal pull test until wire breaks
- Stroke max.: 43 mm
- Pull-out speed: 25 / 50 mm/min
- Pull-out speed 2: 50 / 100 mm/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 25 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 130 mm
- Dimensions/length: 405 mm
- Dimensions/width: 205 mm
- Weight: 8 kg
- Temperature operation: 0 - 50 °C
- Protection class: IP 20
- Measurement range / force sensor: 1000 N
- Measurement range N min.: 0 lbf
- Measurement range N max.: 110 / 220 other variations available by special order
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: LCD 6-digit
- Data interface: RS 232
- Unit of measurement: Newton (N), Kilopond (Kp), Poundforce (lbf)
- Power requirement: 24 V DC; 35 VA
Imperial
- Analysis software: WinCrimp
- Measuring range, quantity: 2
- Pull-out speed, quantity: 2
- Additional equipment: various holders
- Power source: Electric
- Memory capacity: N/A
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: Normal pull test until wire breaks
- Stroke max.: 1.6929 in
- Pull-out speed: 0.98 / 1.97 in/min
- Pull-out speed 2: 1.97 / 3.94 in/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 25 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 5.1181 in
- Dimensions/length: 15.9449 in
- Dimensions/width: 8.0709 in
- Weight: 17,637 lb
- Temperature operation: 32 - 122 °F
- Protection class: IP 20
- Measurement range / force sensor: 220 lbf
- Measurement range N min.: 0 lbf
- Measurement range N max.: 110 / 220 other variations available by special order
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: LCD 6-digit
- Data interface: RS 232
- Unit of measurement: Newton (N), Kilopond (Kp), Poundforce (lbf)
- Power requirement: 24 V DC; 35 VA
