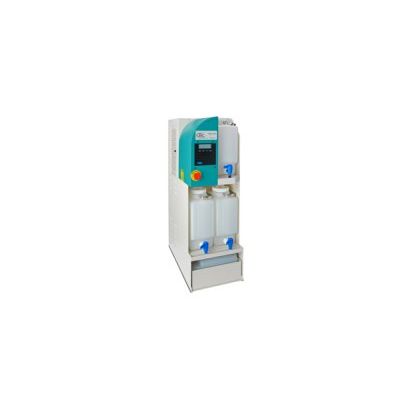

CBG - Model 2.5 Gallon (10 Liter) -Benchtop Supreme Solvent Recycler

• Model Number: MSLV-03U-A (120 V configuration) MSLV-03-CE-A (220/240 V configuration)
• Dimensions: 13 inches wide, 39 inches high, 23 inches deep (33 cm wide, 99 cm high, 59 cm deep)
• Electrical Configurations: 120 VAC, 15.0 A, 50/60 Hz, 220 VAC, 7.5 A, 50/60 Hz, 240 VAC, 8.2 A, 50/60 Hz
• Cycle Times: Xylene: 60 to 75 minutes per gallon (15 to 20 minutes per liter)
• Ethanol: 90 to 115 minutes per gallon,  (20 to 30 minutes per liter)

• Fractional distillation
• Microprocessor controlled, fully automated
• Automatic waste disposal
• No cool-down between runs
• Built-in spill containment
• Satisfies the latest Uniform Fire Code requirements for solvent distillation units
• No water hook-up or special ventilation required
• No hot surfaces – cool to the touch
• ETL Listed to UL 61010 and UL 2208 and comparable Canadian standards (CSA) for 120 V configuration
• Built to CE Standards

Alternate Configuration: 2.5 Gallon Benchtop Compact Solvent Recycler (available in North America only)

Model Number:  BTC-MSLV-03U-M  (120 V configuration)

• Manual waste disposal
• All other specifications remain the same
