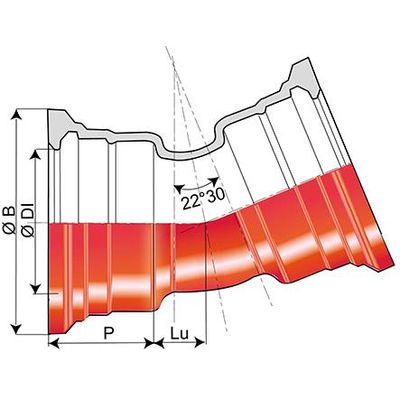

Saint-Gobain-PAM - Model 22°30 (1/16) -Bend

Field of use:

• Separate sewer system and combined sewer system
• Application: gravity flow and rising main sewerage systems
• Type of effluent: domestic wastewater and rainwater
• For networks with rising main under pressure
• For effluents between pH1 and pH13

• External and internal coating: red epoxy powder 250µm (PECR)
• Type of joint: Standard
• Standard Gasket in Nitrile
• EN 598 / CE Marking
• Declaration of performances DoP-INTEGRAL005EN
• Mark NF
• Designed according to the regulatory texts:
  • NF EN 476: general prescriptions for components used in the networks
  • NF EN 752: Conception of sewage projects
  • NF EN 1610: Reception of the works
  • CCTG: Fascicule 70 (sewage work)
