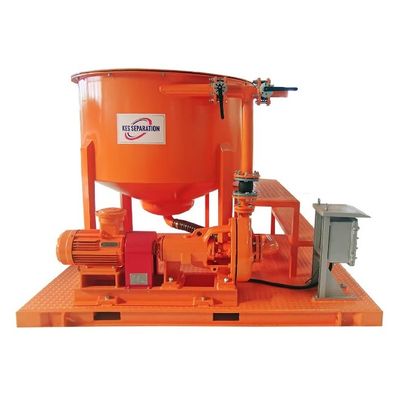

KES Separation - Bentonite Mixer Unit

KES Separation - Bentonite Mixer Unit

FromKES Separation Machinery Tianjin Co. Ltd

SHARE

The Bentonite Mixer Unit uses the Venturi jet principle for fast, efficient pulping, delivering smooth, lump-free slurry. With high mixing efficiency, energy-saving operation, and easy maintenance, it’s perfect for drilling mud, foundry, and industrial applications—ensuring consistent performance and reliable results for your operations.

Most popular related searches

disc stack separation

drilling mud centrifuge

vertical cutting dryer

chemical dosing system

dewatering centrifuge

Bentonite mixer unit adopts the principle of Venturi jet to mix and make pulp, with good mixing effect and high pulping efficiency.

It can be sheared according to flocculent drug and can be dissolved efficiently;
PLC control system carries out automatic slurry preparation to save manpower;
Skid mounted design is adopted as a whole to facilitate transportation and movement;
It can be used to prepare bentonite for trenchless infrastructure construction such as horizontal directional crossing, shield tunneling and pipe jacking.

Model: HJXT5015

Treatment Capacity(m³/h): 30
Working Pressure(Mpa): 0.3
Volume(m³): 1.5
Pump Power(kW): 7.5
Inlet Size(DN/inch): DN80 / 3″
Outlet Size(DN/inch): DN80 / 3″
Suction Port Size (DN/inch): DN100 / 4″
Weight(kg): 2280
Dimension(mm): 2500x2000x1755
