Better Weigh - Continuous Weigh Feeders
Continuous Weigh Feeders For highly accurate, gravimetric feeding of dry bulk materials in batch or continuous operation. Better-Weigh®` Batch/Continuous Weigh Feeders are designed to provide feeding in either batch or continuous mode depending upon the arrangement of the feeder`s control electronics. In batch mode, the batch controller is used to control the fast (bulk) and slow (dribble) speeds of the feeder. Accuracies of ±0.5% can be easily achieved in 2 lb. or less batches, and ±0.25% with 3 lb. or greater batches with time spans of 30 to 90 seconds. In continuous mode, the feeder`s electronic controller is used to constantly monitor loss-of-weight of material per time in order to maintain a continuous loss-of-weight with an accuracy of ±0.25% to 0.50%.
Features/Benefits
- Accuracy: +/- 0.25% to 0.50% on batch or on minute samples when continuous
- Features: Highly accurate gravimetric feeder utilizing platform and balance scale. Automated manual batching, 2 or 5 cu. ft. hopper. Sanitary construction available.
- Drive: AC variable frequency drive standard.
Operating Characteristics
- Handles powders, pellets, flakes, and other dry materials where it is necessary to determine actual feed rates on a loss-of-weight basis

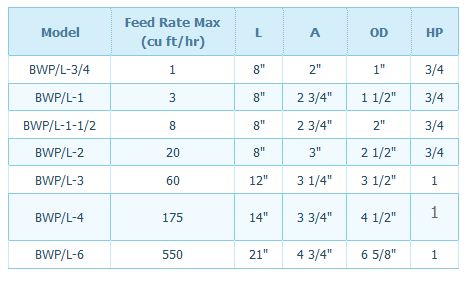

Specifications Dimensions
Model BWP/L "Better Weigh"® Batch Feeder
Construction
- 304 or 316 stainless steel
