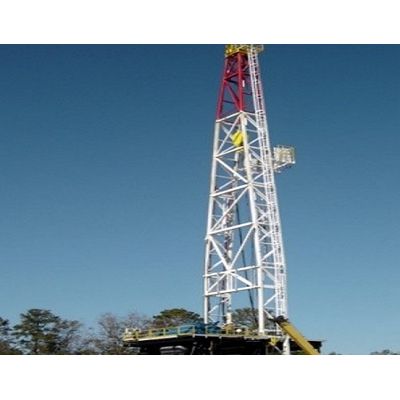

BHL - Model 2000HP x 1,300,000 lbs -Hook Load Land DC Drilling Rig

FromBHL International, Inc

SHARE

Mast: (New). Model: 147′ x 1,300,000 lbs. Self-Elevating Racking Capacity: 25,000 ft. of 5″ Triples. Substructure: (New) Model: Self-Elevating. Casing Capacity: 1,300,000 lbs. Setback Capacity: 800,000 lbs. Total Capacity: 2,100,000 lbs. Mast and Substructure AP/ 4F, 4th Edition Monogrammed and Certified, NEW. Top Drive: (New) 500 Ton NOV TDS 11S.

Most popular related searches

mud gas separator

water tank control

Rig Skidding System: (New) – Included.
Drawworks: NOV 1320UE,2000HP (Refurbished)
Drill Line: (New) 5,000 ft. Type 1%” EIPS, IWRC
Deadline Anchor: (New) Hercules 1,400,000 lbs.
Hook Load on 14 Lines
Traveling Assembly: (Refurbished)
Block: 650 Ton; Hook: 650 Ton
Rotary Equipment:(Refurbished) Swivel: 650 Ton;Kelly: 5 %”, 40 ft. Hexagonal Rotary Table: 37 Yz”
Mud System (New) (3) 1600HP Triplex ,American Block;7500psi
Active Tanks: 1500 BBLs (3 tanks)
Reserve Tanks: 1500 BBLs (3 tanks)
Tanks are supplied with Roofs to Keep Mud Dilution with RainWater.
Generator Units: (New)

(4) CAT Engines 3512(5904HP Total) (Refurbished)
(4) Generators Kato 6P6-3300

SCR House: (New) (4) Generator Modules x (5) SCR Bays
Auxiliary Equipment & Storage (All New)
Air compressor, Air Receivers,Air Dryer, Cold Compressor, Dog House, Change & Equipment Storage House, Fuel Tanks (3 total capac ity 750BBLs), Water Tank (2)
Instrumentation, Control and Recording Equipment (New)
BOP and Well Control Equipment (Refurbished) 5,000 psi Annular; 10,000 psi Single Ram; 10,000 psi Double Ram;

10,000 psi Drill Spool;Shear Ram;
(1) Set Riser & Bell Nipple

Choke Line Valves & Kill Line Valves;Accumulator Unit; Choke Manifold; Hydraulic Power Unit; BOP Handling System
Mud Gas Separator: 48″ Diameter x 20′ High
Stand Pipe and Stand Pipe Manifold: Rated to 7500 psi to match Mud Pump Rating
