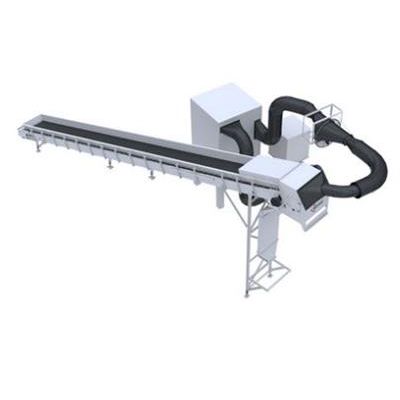

Bianna - Model SS7.5 - Suction System
From Suction System
We have improved our know-how on these equipments, thanks to our pneumatic expertise, developing a highly efficient system for the recovery of PEBD plastic (low density polyethylene) which is based on:
-
Most popular related searches
Products Details
- Hopper fitted with adjustable deflectors for the right air ducting.
- Adjustable blow nozzles.
- Alveolar valve for the suction film decantation and air separation.
- Sleeve felter for the dust elimination.
- Impulsion and suction fans.
- Galvanised steel pipelines transportation system.
We also offer customised solutions for each project, searching for a great plastic film separation and low investment costs.
MAIN PARTS
- Impulsion fan.
- Automatic suction entrance.
- Drilled rotary disc.
- Pipeline transport.
- Sleeve filter.
- Suction fan.
Advantages
- Separation performance increase compared to manual systems.
- Low operation and maintenance costs.
- Cleaning access in all the critical points including pipelines transportation.
- Suction, transportation, decantation and cleaning of the air, all in the same system.
Technical Data
- Capacity: to 7.500 m3/h
- Rotary valve: MO120
- Impulsion fan : 1500 rpm, 10.500 m3/h, 1.5 kW
- Sleeves filter: 24 sleeves
- Suction fan: 3000 rpm, 7.500 m3/h, 11 kW
- Compressor: 0.8 m3/min, 7.5 bar
