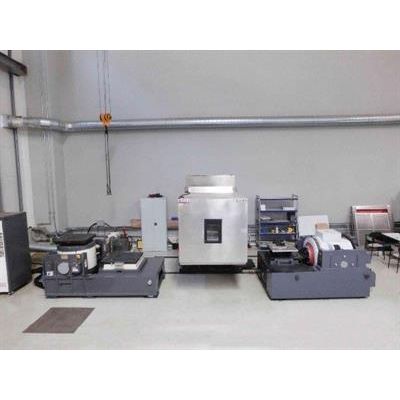

Bias - Vibration and Shock Testing System
Vibration and shock testing is mostly done by using electrodynamic shakers. Electrodynamic shakers can perform vibration tests up to 2000Hz whereas servo hydraulic shaker offers up to 200Hz test capability but with larger dimension and heavier payloads. Vibration and shock tests in three orthogonal directions are performed sequentially. Horizontal tests are performed on slip table of the shaker system and vertical test is performed on shaker in vertical manner.
Most popular related searches
shock test
vibration test
environmental test chamber
electrodynamic shaker
shock testing system
environmental testing
test chamber
combined environmental test
combined environmental testing
chamber test
Infrastucture
- Electrodynamic shaker
- Maximum force 49 kN (Sine & Random); 98 kN (shock)
- Maximum payload 1000kg
- Static load capability 800kg
- Maximum displacement 51mm
- Frequency range: 5-2400Hz
- Slip table and head expander: 800mm x 800mm
- Can be combined with environmental test chamber.
RELATED TEST STANDARDS
Note: Below are example standards can be performed.
Defense-Aerospace Industry
- MIL-STD-810G: Military Products
- MIL-STD-167: Shipboard Equipment
- MIL-DTL-25707: Antennas
- MIL-DTL-26500: Electrical Connectors
- MIL-E-5400: Electronic Equipment
- MIL-PRF-15733: Filters & Capacitors
- MIL-PRF-28800: Electrical/Electronic Equipment
- MIL-HDBK-2036: Electronic Equipment
- NAVMAT_P-9492: Navy Military Electronics
- RTCA DO-160G
- NATO AECTP 400: Mechanical Environmental Tests
Automotive
- ISO 16750
- OEM STANDARDS (Ford, Fiat, Toyota, Hyundai, Honda, PSA, VW, GM, Mercedes, etc…)
Railways
- TS EN 61373
- AREMA PART 11.5.1
- ANSI C136.31-2010
Marine
- IEC 60945 / EN 60945
Electrical-Electronics
- TS EN 60068/IEC 60068
Packaged Product Tests
- EN ISO 13355
- EN ISO 8318
- ISO 4180
