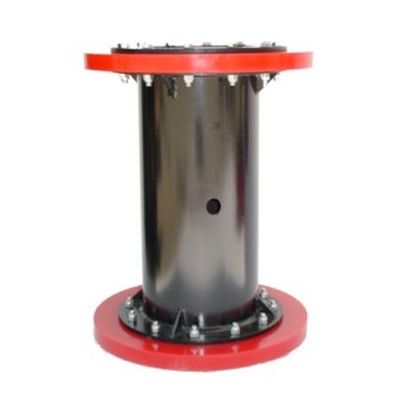

PIGS - Model BGD-2 -Bidirectional Displacement Pipeline Pig
BGD-2 Bidirectional Displacement Pigs consist of a carbon-steel body equipped with two (2) easily replaceable polyurethane discs. Models 2″ through 8″ are center-rod type and 10” and up are bolting pattern configuration. They are also capable of being fitted with a gauging plate machined to customer specifications. Options and other configurations include carbon-steel, stainless-steel or aluminum body; discs manufactured from neoprene, viton, epdm, buna-n or other elastomer compounds for special services; aluminum or steel gauging plate of varying thickness (available with slots); transmitter or pinger cavity; magnets for ferrous debris or for magnetic detection; modified configuration to include cups for increased sealing capabilities; customized dimensions for special pigging applications.
BGD-2 Bidirectional Displacement Pigs consist of a carbon-steel body equipped with two (2) easily replaceable polyurethane discs. Models 2″ through 8″ are center-rod type and 10” and up are bolting pattern configuration. They are also capable of being fitted with a gauging plate machined to customer specifications. Options and other configurations include carbon-steel, stainless-steel or aluminum body; discs manufactured from neoprene, viton, epdm, buna-n or other elastomer compounds for special services; aluminum or steel gauging plate of varying thickness (available with slots); transmitter or pinger cavity; magnets for ferrous debris or for magnetic detection; modified configuration to include cups for increased sealing capabilities; customized dimensions for special pigging applications.
- Transmitter Cavity
- Magnets
- Brushes
- Gauging Plate
- Bypass Holes
- Custom Diameter
- Custom Length
- Combination of cups and discs
- Replaceable Components
- Standard Scraper Discs
- Aluminum Gauge Plates
