ProMinent GmbH

- Big Bag Emptying Unit

From

0

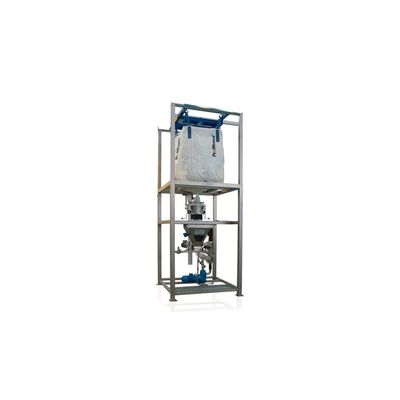

Emptying of Big Bags up to 1,000 kg; This emptying unit is used to accommodate and empty Big Bags weighing up to 1,000 kg. The Big Bags are suspended in the frame with the aid of a lifting cross bar. The 30-litre powder storage tank is used to transfer the powder into a feed unit.

Emptying made simple!

Tomal® Big Bag Emptying Units are designed for use with both disposable and returnable sacks. When used with disposable bags, the emptying unit is equipped with pyramid blades; when used with reusable bags it is equipped with a flap. The Big Bags are suspended in the frame with the aid of a lifting cross bar. The discharge funnel is matched to the bag size used. A special rubber seal ensures minimum dust formation. A vibrator is used as a discharge aid and is controlled by the empty level signaller below the outlet. Used in conjunction with the TOMAL® Multi-Screw Feeder, it permits the discharging and metering of free-flowing or poorly-flowing bulk goods.

  • Complete systems for bag emptying and metering
  • For free-flowing or poorly flowing bulk goods
  • Flexible modular system for tailored solutions
  • Turnkey, tested systems
  • High quality standard, certified to SS-EN ISO 9001
  • Modular design

  • Cellulose and paper industry
  • Chemical industry
  • Food industry
  • Glass and porcelain manufacturing
  • Clarification plants
  • Flue gas cleaning systems
  • Construction materials industry
  • Regulation of pH in rivers and lakes

  • Frame 1,570 x 1,300 x 2,540 mm (WxLxH). The height can be adjusted up to 2,040 mm
  • Powder storage tank with powder filling probe, 30-litre content
  • Discharge funnels available for various bag sizes
  • Tomal ® multi-screw feeder for reliable emptying of Big Bags and accurate metering
  • Pyramid blades for disposable bags, alternatively flap for use with reusable bags
  • Rubber seal for minimisation of dust
  • Vibrator as discharge aid, controlled by the empty level signaller under the outlet
  • Lifting equipment comprising lifting cross for forklift, alternatively manual or electrical travelling crane
  • Hygienic Big Bag emptying for dust-free operation
  • Dust extraction filter
  • Complete electrical system
