Binder - Model QFE -Direct Hydraulic Feeding Unit

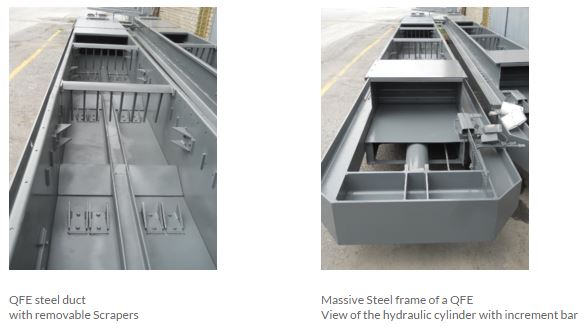

Usually the Direct Hydraulic Infeed is used to transport coarse material into the combustion chamber. The QFE is mostly used in combination with an walking floor. A level sensor constantly monitors the level of material in the QFE. A hydraulically driven pusher with multiple carriers transports the material through a wall opening in the combustion unit. The required anti burnback protection is ensured by the tightly sealed cutting edges, as well as through an automatic fire extinguishing system and a battery backed up hydraulic unit which closes the pusher in case of power loss.
