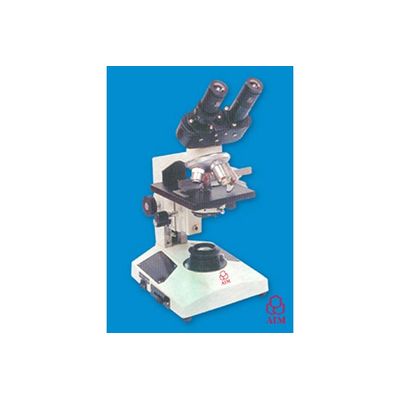

AIM - Binocular Research Microscope

An advanced Binocular 45 degree or 30 degree inclined model rotatable through 360 degree with well in take locking device. The head is interchangeable with Trinocular head or vertical photo tube for microphotography as optional. Single piece die cast arm & large size rectangular, heavy base fitted with Transformer & electricals. Quadruple revolving nosepieces, but built in graduated coaxial mechanical stage (size 135mm * 120mm) for easy slide manipulation & focusing by vertical movement of stage, coarse adjustment by rack pinion & fine sensitive focusing by lever reading to 0.002 mm. Bring field, Abb`s N.A. 1.2 condenser with iris- diaphragm & filter holder, focusable by rack-pinion. Illumination by 6V -20W Halogen lamp fitted under the field lenses operated through transformer. Mirror attachment is also provided (for day light working).
