AIM Scientific products

Round base model for greater stability & better look, Equipped with joint revolving arm for moving the magnifying lens over the stage. Focusable by rack & pinion. Supplied with 10x & 20x Eye pieces, in a wooden box.

Aluminum die cast base. Monocular body inclinable up to 90³. Mechanical tube length 160 mm, triple revolving nosepiece, fixed square stage 120 mm with stage clips, fixed condenser (N.A. 1.2) with iris-diaphragm & filter holder, Focusing by vertical movement of body tube, coarse adjustment by rack-pinion movement. Fine adjustment by screw-level mechanism. Illumination by Plano Concave mirror dia 50 mm. Adjustable down stopper to prevent breakage of the specimen slides. Optics : Ach. Objectives : 10x & 40x or 45x. Huy. Eye piece : 5x, 10x & 15x. Supplied with Dust cover, Duster, filter & operating manual in styrofom case.

The body is well designed, inclined monocular with sturdy base, overall height 500mm. The coarse motion is by rack and pinion arrangement. The dome is having precise screen and condenser 150mm. the illumination is with powerful condenser for high intensity of light, low voltage lamp to work on built-in transformer. The object is projected on the optical glass screen having 150mm dia. The dome fits on the tube of Microscope and can be rotated in all directions. Transformer 12 Volts, 36 Watts with lamp and detachable mechanical stage.

AIM Travelling Microscope consists of a cast iron base with machined-Vee-top surface and is fitted with three levelling screws. A matallic carriage, clamped to a spring loaded bar slides with its attached vernier and reading lens along an inlaid strip of metal scale. The scale is divided in half millimeters. Fine adjustments are made by means of a micrometer screw for taking accurate reading. Both vernier reading to 0.01mm or 0.02mm. Microscope tube consists of 10x Eyepice and 15mm or 50mm or 75mm objectives. The Microscope, with its rack and pinion attachment is mounted on a vertical slide, which too, runs with an attached vernier along the vertical scale. The microscope is free to rotate n vertical plane. The vertical guide bar is coupled to the horizontal carriage of the microscope. for holding objects a horizontal stage made of a milki conolite sheet is provided in the base.

Binocular Inverted Tissue Culture Microscope with quadruple revolving nosepiece, equipped with AIM Binocular head assembled from imported prisms and best quality optical components having full prismatic optical path. Large specimen stage with extension plates, coarse and graduated slow motion knobs. Variable intensity controlled solid-stat transformer powered 20 watts Halogen built-in-base, illumination based on Keohler system. Optics : Ach. Objectives : 5x, 10x, LWD 20x & LWD 40x. Eyepiece : WF 10x (Paired)

A unique research monocular 45 deg. Inclined microscope rotatable through 360 deg. With adjustable locking device. The Head is interchangeable with Binocular or Trinocular head as optional. Single piece die cast arm & large size rectangular, heavy base fitted with Transformer & electricals. Quadruple revolving nosepieces, built in graduated coaxial mechanical stager (size 135mm x 120mm) for easy slide manipulation & focusing by vertical movement of stage, coarse adjustment by rack pinion & fine sensitive focusing by screw lever reading to 0.002mm. Bright field, Abb`s N.A. 1.3 condenser with iris-diaphragm & filter holder, focusable by rack-pinion, Illumination by 6V - 20W Halogen lamp fitted under the field lenses operated through transformer. Mirror attachment is also provided (for day light working).

An advanced Binocular 45 degree or 30 degree inclined model rotatable through 360 degree with well in take locking device. The head is interchangeable with Trinocular head or vertical photo tube for microphotography as optional. Single piece die cast arm & large size rectangular, heavy base fitted with Transformer & electricals. Quadruple revolving nosepieces, but built in graduated coaxial mechanical stage (size 135mm * 120mm) for easy slide manipulation & focusing by vertical movement of stage, coarse adjustment by rack pinion & fine sensitive focusing by lever reading to 0.002 mm. Bring field, Abb`s N.A. 1.2 condenser with iris- diaphragm & filter holder, focusable by rack-pinion. Illumination by 6V -20W Halogen lamp fitted under the field lenses operated through transformer. Mirror attachment is also provided (for day light working).

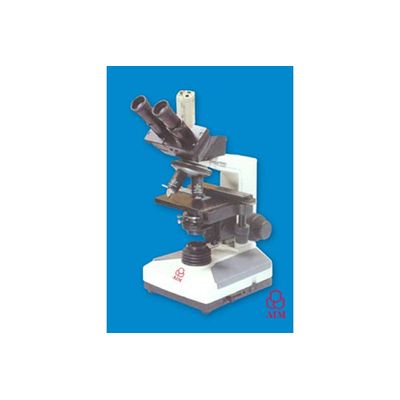

An advanced trinocular 45 degree inclined microscope with observation tubes, rotatable through 360 deg.& adjustable in any direction with a clamp screw. Interpupillary distance & diopter is adjustable. Right hand slide lever provides 100% light to Binocular head or vertical photo tube. Single piece die cast arm & large size rectangular, heavy base fitted with transformer & electricals. Quadruple revolving nose-pieces, built in graduated coaxial mechanical stage (size 135 * 120 mm) for easy slide manipulation & focusing by vertical movement of stage, coarse adjustment by rack-pinion & fine sensitive focusing by screw lever reading to 0.002 mm. Bright field, Abb`s N.A. 1.3 condenser with iris-diaphragm & filter holder, focusable by rack-pinion. Illumination by 6V - 20W Halogen lamp fitted under the field lenses operated through transformer. Mirror attachment is also provided (for day light working).

A DATALOGGER is an advanced scientific electronic device that records data over time or in relation to location either with a built in instrument or sensor or via external instruments and sensors. Increasingly, but not entirely, they are based on a digital processor. One can record the data on their Laptops, computers, etc. It is very useful in Scientific Education learning and teaching. ( Data loggers are available in India - from Vernier USA and Pasco USA).
