bioCycle - Domestic Wastewater Treatment System
The bioCycle™ System represents an advanced and comprehensive solution for domestic wastewater treatment, ensuring a high level of efficiency and environmental safety. This system is designed with several innovative features, including an above-ground blower box that must be well-ventilated to prolong the blower's lifespan. The system provides easy access for inspection and maintenance with a large access manhole. In case of power outages or pump malfunctions, the bioCycle™ System's 4,000-litre freeboard capacity allows it to continue handling effluent for up to 48 hours. Additionally, its unrivaled sludge storage and 2,800-litre aeration chamber ensure a long retention time, enhancing treatment consistency and performance. The extended de-sludging period, possibly up to 10 years, is achieved through anaerobic digestion that significantly reduces sludge volume. Moreover, the system is backed by a 30-year guarantee, provided it is installed and maintained as specified by bioCycle™. This system also features multiple diffusers and a range of high-quality components, such as concrete tanks, air blowers, and control panels, all designed to deliver reliable and efficient wastewater treatment.
The multi-award winning bioCycle™ system is Ireland’s superior wastewater treatment system. Each system is specifically designed to provide superior performance and to ensure consumer and environmental protection.
- Highest Treatment Performance.
- Reinforced Concrete Tank.
- Tested & Certified to EN 12566-3.
- Multiple Safety Features.
- 30 Year Warranty.
- Longest Desludging Intervals 7-10 Years.
- Agrément Certified.
- Proven system with over 25 years successful operation.
1. Above Ground Blower Box
The air blower must be located in a well-ventilated area. Blowers located within the treatment system will have a decreased life span.
2. Large Access Manhole
Allows easy access to all parts of the system for inspection and servicing.
3. 4,000 Litre Freeboard Capacity
In the event of power failure or pump malfunction allows the system to continue to receive effluent for up to 48 hours without overflowing or discharging untreated effluent into the environment.
4. 3000 Litre Capacity – Up To 10 Years
Unrivalled sludge storage allows for anaerobic digestion, reducing the sludge volumes by up to 50% this results in an extended de-sludging period of 10 years.
5. 2,800 Litre Aeration Chamber
Longer retention times means higher and more consistent level of treatment. Multiple diffusers in the aeration chamber greatly enhance the performance by reducing the dead spot’s within the chamber.
8,000 Litres Working Capacity
Higher and more consistent level of treatment.
Extended desludging periods (approx 7-10 years).
The ability for the system to accept shock & varying loads.
Can handle normal amounts of FOG, detergents, bleaches, etc.
4,000 Litres Emergency Capacity
Allow the system to continue receiving effluent in the event of a malfunction or power failure for a minimum of 60 hours as required by some Local Authorities.
Allows service personnel to enter the system for servicing.
Pumped Discharge
In the event of a malfunction or power failure will not discharge untreated effluent into the environment causing pollution and possible contamination of drinking water.
Greatly reduces to risk of blockages and ponding in the polishing filter.
Distributes the effluent evenly throughout the polishing filter allowing more effective tertiary treatment.
Single Tank Unit
Visual Unobtrusive.
More effective sludge return, reduces the risk of blockage and guarantees long term treatment performance.
No risk of blockage between the multiple tanks

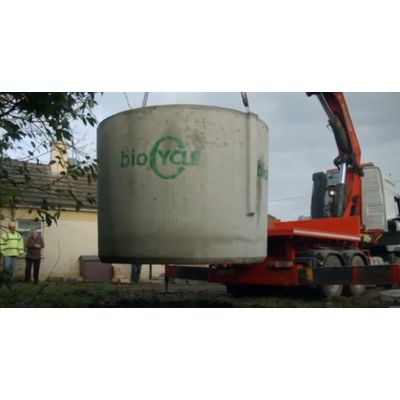

Reinforced Concrete Tank
Long lifespan.
No concrete backfilling.
No risk of the tank being crushed by high water table.
High Treatment Performance
Allows the treated wastewater be used for irrigation.
Help to protect environment and you.
System is Adjustable
Can be easily adjusted for varying loads/family sizes.
If a problem does arises with performance it can be easily rectified.
Blower Located Above Ground
Negates damage from internal flooding.
Well ventilated which will not decease the life of the blower.
Meets electrical regulations and health & safety regulations.
EN 12566-3 Results
EN 12566-3 is the new standard for wastewater treatment systems up to a population equivalent of 50. The bioCycle™ system underwent 38 weeks of testing in a EN 12566-3 accredited test facility to assess its treatment efficiency, structural behavior and water tightness. On successful completion of testing the bioCycle™ system was awarded the following CE mark.
